ADP2302ARDZ Step-Down DC-to-DC Regulator

The ADP2302ARDZ from Analog Devices Inc. is a high-performance, integrated step-down DC-to-DC regulator designed to provide efficient power conversion for a wide array of applications. This device is part of the ADP230x series, which is known for its robustness, flexibility, and ease of use.

Featuring an input voltage range of 4.5 V to 20 V, the ADP2302ARDZ is capable of delivering up to 2 A of continuous output current, making it an excellent choice for powering a variety of electronic devices. The output voltage is adjustable from 0.8 V to VIN, allowing for great versatility in application design. This adaptability makes the regulator suitable for a broad range of end products, including industrial controls, consumer electronics, and communication infrastructure.

One of the key advantages of the ADP2302ARDZ is its high efficiency, which is achieved through current-mode, fixed-frequency operation at a switching frequency of 1.2 MHz. This high frequency enables the use of small, low-cost inductors and capacitors, resulting in a compact power solution that reduces the overall footprint on the printed circuit board (PCB).

The regulator incorporates several protective features to ensure reliability and long-term performance. These include overcurrent protection (OCP), thermal shutdown (TSD), and under-voltage lockout (UVLO). The combination of these features safeguards the device and the system it powers from a range of potential fault conditions.

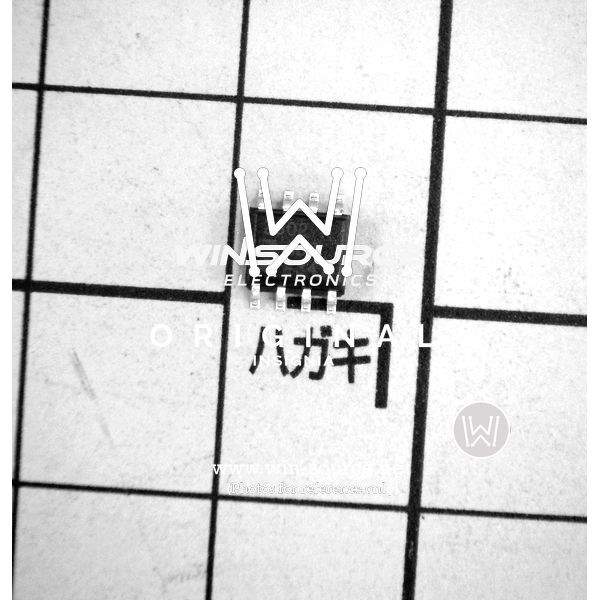

For design flexibility, the ADP2302ARDZ is offered in a compact 8-lead SOIC package, which is ideal for space-constrained applications. The package is designed for optimal thermal performance, ensuring that the device operates within its temperature range even under full load conditions.

Analog Devices Inc. provides comprehensive support for the ADP2302ARDZ, including detailed datasheets, application notes, and design tools. These resources assist engineers in quickly integrating the regulator into their designs and bringing efficient, reliable power solutions to market.

Overall, the ADP2302ARDZ is a testament to Analog Devices Inc.'s commitment to providing innovative, high-quality power management solutions that meet the evolving needs of modern electronics.
