ADP2387ACPZN-R7: High-Efficiency, Synchronous, Step-Down DC-to-DC Regulator

The ADP2387ACPZN-R7 from Analog Devices Inc. is a high-performance, synchronous, step-down DC-to-DC regulator that delivers exceptional efficiency and power density. This device is capable of supplying up to 4A of continuous output current across a wide input voltage range from 4.5 V to 20 V, making it an ideal choice for a diverse array of applications, including communications infrastructure, networking equipment, industrial systems, and consumer electronics.

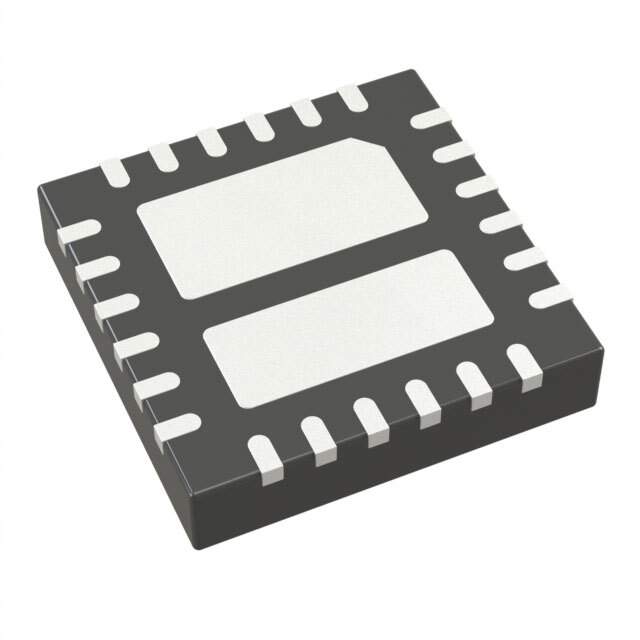

Designed with the modern engineer in mind, the ADP2387ACPZN-R7 integrates a proprietary high-speed current mode, constant frequency PWM control scheme that minimizes the size of external components while maintaining stable operation across a wide range of voltages and load conditions. This feature, combined with its compact 32-lead LFCSP package, provides a space-saving solution that is highly sought after in compact and complex electronic devices.

The ADP2387ACPZN-R7 boasts an impressive array of features, including programmable soft start, precision-enable, power good, external synchronization, and tracking capabilities. These features allow for a flexible and controlled startup sequence, which is critical in preventing inrush current-related issues. Additionally, the integrated power good flag offers a reliable power sequencing solution for systems that require multiple voltage rails.

With its high efficiency of up to 95%, the ADP2387ACPZN-R7 reduces power losses and improves thermal performance, which is crucial for maintaining the integrity and longevity of electronic components. The device also supports selectable discontinuous conduction mode (DCM) or forced continuous conduction mode (FCCM), giving designers the ability to optimize the regulator for efficiency or noise-sensitive applications.

For added reliability, the ADP2387ACPZN-R7 incorporates a range of protection features, including overcurrent protection (OCP), overvoltage protection (OVP), thermal shutdown (TSD), and input undervoltage lockout (UVLO). These safeguards ensure that the device operates within safe parameters, protecting both the regulator and the system it powers.

Overall, the ADP2387ACPZN-R7 is a robust and versatile voltage regulator that offers a balance of efficiency, performance, and reliability, making it an excellent choice for designers seeking to optimize their power management solutions.
