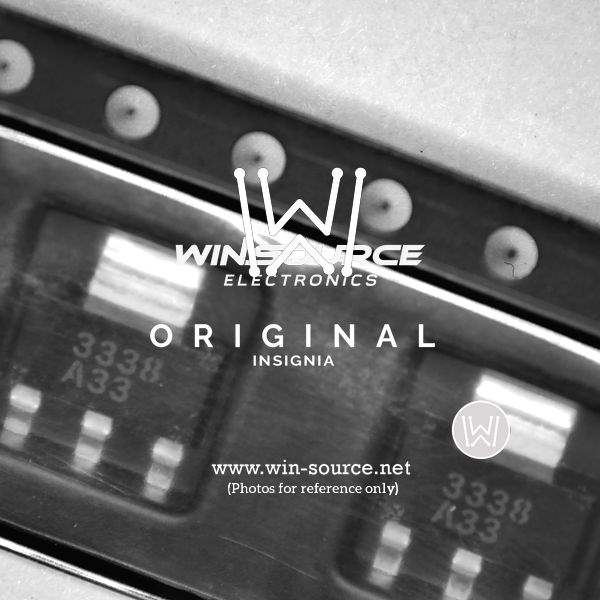

ADP3338AKCZ-5.0 - High-Accuracy, Low-Dropout Linear Regulator

The ADP3338AKCZ-5.0 is a premium quality low-dropout linear regulator designed and manufactured by Analog Devices Inc., a renowned leader in high-performance analog, mixed-signal, and digital signal processing integrated circuits. This device offers a fixed output voltage of 5.0V, catering to a wide array of applications that require a stable and accurate power supply.

Key Features:

• High Accuracy: The ADP3338AKCZ-5.0 boasts an impressive output voltage accuracy of ±1%, ensuring reliable performance for sensitive electronic circuits.
• Low Dropout Voltage: With a low dropout voltage of typically 200 mV at 1 A, this regulator can maintain output regulation with minimal input-to-output voltage difference, making it highly efficient for battery-powered devices.
• High Output Current: Capable of delivering up to 1 A of output current, it is well-suited for applications that require a substantial amount of power without compromising stability or efficiency.
• Excellent Load and Line Regulation: The device's superior load and line regulation characteristics ensure a consistent output despite variations in input voltage or output load.
• Overcurrent and Thermal Protection: To safeguard your electronic components, the ADP3338AKCZ-5.0 features built-in overcurrent protection and thermal overload protection, enhancing the longevity and reliability of both the regulator and your application.
• Low Noise: This regulator is optimized for low noise operation, making it an ideal choice for noise-sensitive applications such as RF or precision instrumentation.
• Noise Reduction Pin: An additional noise reduction pin allows for further reduction of the output noise when used with an external bypass capacitor.
• Wide Operating Temperature Range: The device is rated for operation over the industrial temperature range of −40°C to +85°C, accommodating various environmental conditions.

Applications:

The ADP3338AKCZ-5.0 is versatile and can be used in a multitude of applications, including:

• High-performance DSPs and microcontrollers
• Portable and battery-powered equipment
• Data acquisition systems
• Medical and healthcare devices
• Automotive electronics
• Telecommunications infrastructure

With its combination of accuracy, efficiency, and robust protection features, the ADP3338AKCZ-5.0 from Analog Devices Inc. is a reliable choice for designers looking to optimize the performance and safety of their electronic systems.
