Introducing the ADRF5019BCPZN from Analog Devices Inc.

The ADRF5019BCPZN is a state-of-the-art silicon SPDT (Single Pole Double Throw) switch from Analog Devices Inc., a leader in high-performance analog technology. Designed for a broad range of RF and microwave applications, this switch is a perfect solution for designers looking for high isolation, low insertion loss, and fast switching speed in their communication systems.

Key Features

• Frequency Range: The ADRF5019BCPZN operates over a wide frequency range from DC to 44 GHz, making it versatile for various applications including test equipment, microwave radios, and military end-use.
• High Isolation: With an isolation of 30 dB typical at 30 GHz, this switch ensures minimal crosstalk between signal paths, providing clarity and integrity to the signals being transmitted or received.
• Low Insertion Loss: The insertion loss is only 1.7 dB typical at 30 GHz, which means that the switch preserves signal strength effectively, ensuring minimal attenuation during the switching process.
• Non-Reflective Design: It features a non-reflective design with 50-ohm matched ports, contributing to its superior RF performance and reducing signal reflections that can degrade overall system performance.
• Fast Switching Speed: The ADRF5019BCPZN boasts a fast switching speed of 15 ns, enabling rapid signal routing that is essential for high-speed communication systems and agile frequency-hopping applications.
• Power Handling: It offers an impressive input power handling capability of 27 dBm CW, accommodating a range of signal levels without compromising performance.

Package and Quality

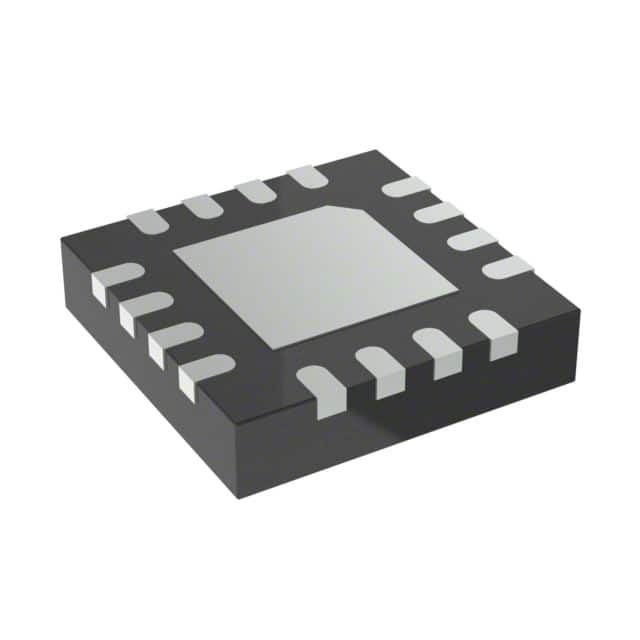

The ADRF5019BCPZN is packaged in a compact, 4 mm × 4 mm, 24-lead LFCSP (Lead Frame Chip Scale Package), which is ideal for space-constrained applications while still providing excellent thermal performance. The product is RoHS compliant and supports lead-free soldering, aligning with environmental standards and regulations.

Applications

This high-performance switch is suitable for a multitude of applications, including but not limited to:

• Wireless infrastructure (GSM, WCDMA, LTE, 5G)
• RF and IF signal routing
• Satellite communication systems
• Phased array antennas
• Test equipment and instrumentation

With its robust feature set, the ADRF5019BCPZN from Analog Devices Inc. is an ideal choice for RF designers seeking to enhance the performance and reliability of their systems.
