The ADSP-BF534BBCZ-5B is a powerful digital signal processor (DSP) from Analog Devices Inc., designed to deliver high-performance signal processing capabilities for a wide range of applications. This DSP is part of the Blackfin family of products, which are known for their dynamic power management features and versatile peripheral set, making them ideal for power-sensitive applications such as portable devices, automotive systems, and industrial control units.

Key Features

• Core Performance: The processor features a high-speed core with a maximum frequency of 500 MHz, enabling rapid data processing and real-time performance in demanding applications.
• Memory: It includes both on-chip memory and external memory interfaces, providing flexibility in system design. The on-chip memory consists of L1 instruction and data caches, as well as L2 SRAM, which can be configured as cache or directly accessed memory.
• Power Efficiency: Designed with power-sensitive applications in mind, the ADSP-BF534BBCZ-5B offers dynamic power management options to optimize performance and power consumption according to the processing load.
• Peripheral Set: The device is equipped with a diverse set of peripherals, including UART, SPI, SPORT, and CAN interfaces, allowing for easy integration with a variety of external components and systems.
• Embedded Security: Security features are embedded to protect IP and ensure secure data handling, which is crucial for applications that require data encryption and secure boot.

Applications

The ADSP-BF534BBCZ-5B is suitable for a broad spectrum of applications, such as:

• Automotive audio, telematics, and driver assistance systems
• Industrial control and automation systems
• Portable and handheld devices
• Medical instrumentation and diagnostics
• Communications infrastructure

Product Specifications

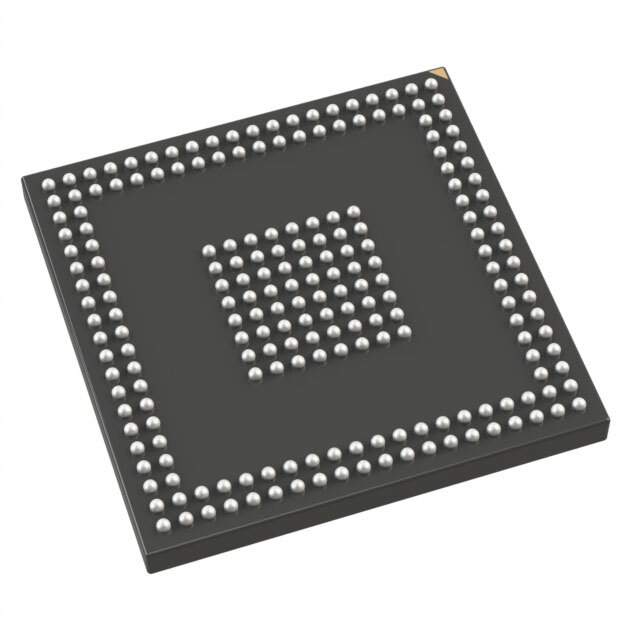

The ADSP-BF534BBCZ-5B DSP comes in a 208-ball CSPBGA package and operates over an industrial temperature range. It is RoHS compliant and supports a variety of development tools provided by Analog Devices, which facilitate rapid prototyping and development.
