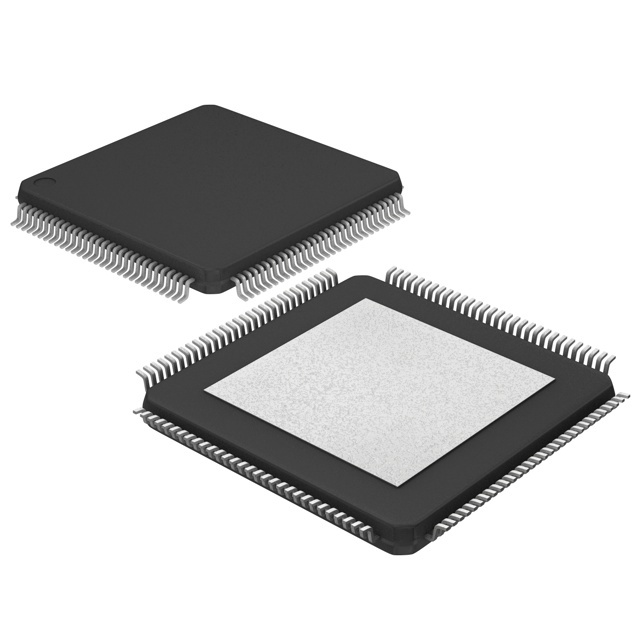

Same model may have multiple batches, images only for reference.
ADSP-BF506BSWZ-4F Analog Devices Inc. – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

ADSP-BF506BSWZ-4F

Part No ADSP-BF506BSWZ-4F
Manufacturer Analog Devices Inc.
Catalog Embedded - DSP (Digital Signal Processors)
Description IC DSP 400MHZ 1.4V 120LQFP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)EmbeddedDSP (Digital Signal Processors)
Manufacturer Analog Devices Inc.
Series Blackfin?
Packaging Tray
Part Status Obsolete
Type Fixed Point
Interface CAN, EBI/EMI, I2C, IrDA, PPI, SPI, SPORT, UART/USART
Clock Rate 400MHz
Non-Volatile Memory FLASH (16MB)
On-Chip RAM 68kB
Voltage - I/O 3.30V
Voltage - Core 1.29V
Operating Temperature -40°C ~ 85°C (TA)
Mounting Type Surface Mount
Package / Case 120-LQFP Exposed Pad
Supplier Device Package 120-LQFP-EP (14x14)
Base Product Number ADSP-BF506
Ultra Librarian 3D Model Ultra Librarian ADSP-BF506BSWZ-4F CAD Model
