Analog Devices Inc. ADUM1200BR Digital Isolator

The ADUM1200BR from Analog Devices Inc. is a high-performance, dual-channel digital isolator that utilizes the company's patented iCoupler® technology. This technology enables the ADUM1200BR to transfer digital signals across an isolation barrier with high data integrity and without the need for the traditional optocouplers.

Key Features

• Isolation Voltage: The device provides an isolation voltage of 2500 Vrms for 1 minute, which ensures reliable operation in environments with high voltage differentials.
• Channels: It comes with two independent isolation channels that can be configured as either two forward channels or one forward and one reverse channel, offering flexibility in bidirectional communication.
• Data Rate: The ADUM1200BR supports a data rate of up to 1 Mbps, making it suitable for a variety of digital communication applications.
• Propagation Delay: With a low propagation delay, typically 13 ns, and very low jitter, the device is ideal for high-speed digital isolation needs.
• Power Supply: It operates with a wide power supply range of 2.7 V to 5.5 V, accommodating various system voltage levels.
• Temperature Range: The device is rated for an industrial temperature range of -40°C to +125°C, ensuring reliable performance in harsh environments.
• Regulatory Approvals: The ADUM1200BR is recognized under UL 1577 for reinforced insulation and conforms to IEC 61010-1 and IEC 60950-1 standards for electrical equipment safety.

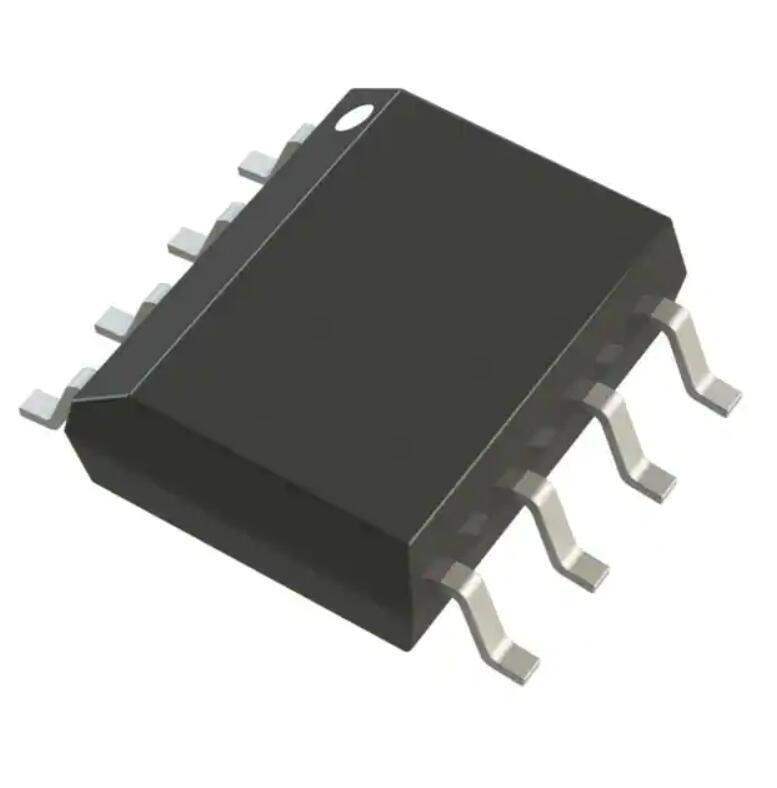

• Package: It is available in an 8-lead SOIC package, providing a compact footprint for space-constrained applications.

Applications

The ADUM1200BR is designed to meet the needs of a wide range of applications where electrical isolation is required. It is particularly useful in industrial automation, data acquisition systems, and communication interfaces such as SPI, I2C, or UART. Its robust design also makes it suitable for medical equipment, where patient safety and data integrity are of utmost importance.

With its combination of high isolation capabilities, data integrity, and flexible power supply options, the ADUM1200BR from Analog Devices Inc. stands out as a reliable choice for system designers looking to enhance safety and performance in their digital isolation applications.
