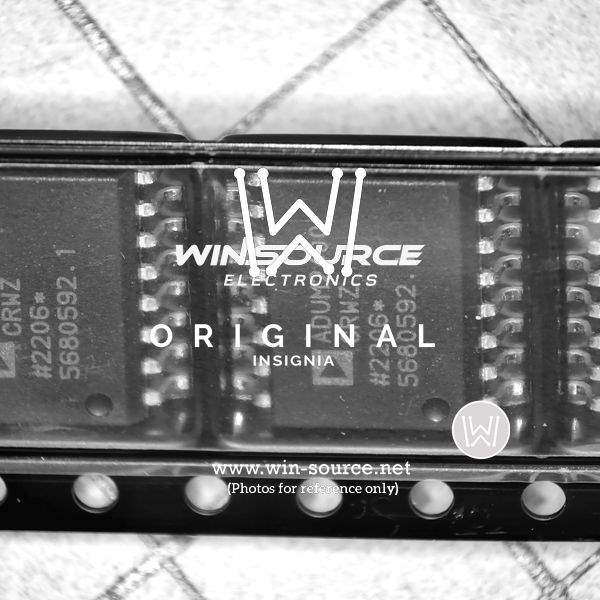

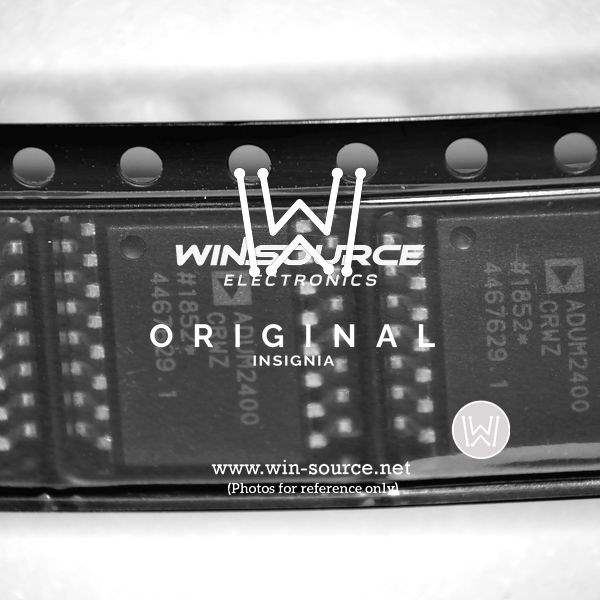

Analog Devices ADUM2400CRWZ Digital Isolator

The Analog Devices ADUM2400CRWZ is a robust, high-performance digital isolator designed to provide reliable signal isolation in a variety of industrial and commercial applications. This component is part of the ADuM240x series, which utilizes Analog Devices' iCoupler® technology to achieve high-speed, four-channel digital isolation. The ADUM2400CRWZ is an ideal solution for systems that require strict electrical isolation between the input and output sides to protect sensitive electronics from high voltages and noise.

Key Features

• Isolation Channels: 4 forward channels
• Data Rate: Up to 1 Mbps (megabits per second)
• Isolation Voltage: 2500 Vrms (volts root mean square) for 1 minute
• High Electromagnetic Immunity: Operates reliably in electrically noisy environments
• Low Power Consumption: Energy-efficient performance ideal for power-sensitive applications
• Wide Temperature Range: -40°C to +105°C, suitable for harsh environmental conditions

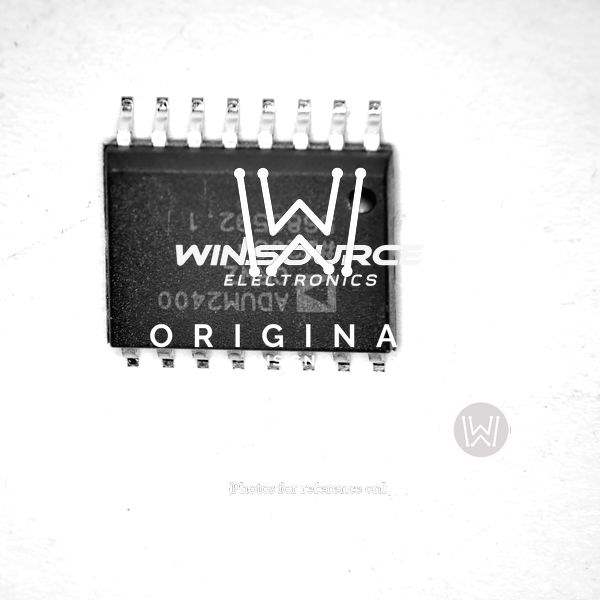

• Package: 16-lead SOIC wide body package
• Approvals: UL, CSA, VDE certifications for safety and reliability

Applications

The ADUM2400CRWZ is versatile and can be used in a wide array of applications, including but not limited to:

• Industrial automation and control systems
• Medical equipment with stringent isolation requirements
• Power supply management and monitoring
• Isolated sensor interfaces
• Data communication systems

Reliability and Safety

Safety is a top priority for any component that provides electrical isolation. The ADUM2400CRWZ meets high safety standards, with certifications from recognized organizations. Its robust isolation protects against high voltages and ensures that the data integrity is maintained even in the presence of common-mode transients.

Easy Integration

The ADUM2400CRWZ's 16-lead SOIC package is compact and compatible with standard PCB layouts, making it easy to integrate into existing and new designs. Its reliable performance and low power consumption make it an excellent choice for designers looking to enhance system safety without compromising on efficiency or space.

With the ADUM2400CRWZ, Analog Devices Inc. continues to deliver high-quality components that advance the field of digital isolation and provide solutions that engineers can trust in their critical applications.
