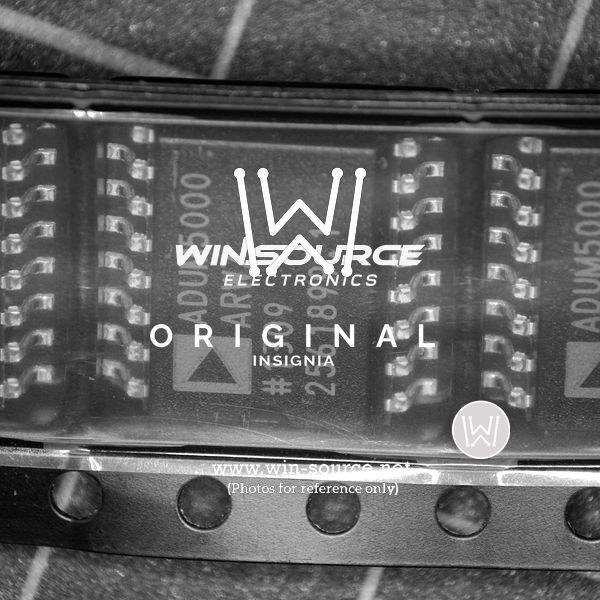

The ADUM5000ARWZ is a high-performance isolated DC/DC converter module from Analog Devices Inc., designed to offer both isolation and power conversion in a single package. This component is part of the iCoupler® family of products that integrates Analog Devices' proprietary isolation technology with robust power conversion functionality.

Key Features

• Integrated Isolation: The device provides 2.5 kV rms isolation for 1 minute per UL 1577, ensuring safety and signal integrity between the input and output.
• isoPower® Technology: Utilizes Analog Devices' isoPower technology to generate isolated power with the convenience of single-package design.
• Regulated Output: Features a regulated 3.3 V or 5 V output, which is selectable via the ADJ pin, providing versatility for different application requirements.
• High Efficiency: Offers up to 16% higher efficiency compared to competing solutions, minimizing heat generation and power loss.
• Compact Footprint: Comes in a 16-lead SOIC wide-body package, which saves valuable board space and simplifies PCB design.
• Low Emissions: Designed to meet CISPR 22 Class B limits for radiated emissions when used in a typical circuit, making it suitable for noise-sensitive applications.

Applications

The ADUM5000ARWZ is ideal for a wide range of applications where isolation is critical for system performance and safety. It is particularly well-suited for:

• Industrial automation and control systems
• Isolated sensor interfaces
• Data acquisition systems
• Medical equipment with stringent isolation requirements
• Power supplies for isolated communication buses

Conclusion

The ADUM5000ARWZ by Analog Devices Inc. is a robust and reliable solution for designers looking to integrate both power conversion and isolation in their systems. Its combination of efficiency, compact size, and compliance with regulatory standards makes it an excellent choice for a multitude of applications where space and performance are at a premium.
