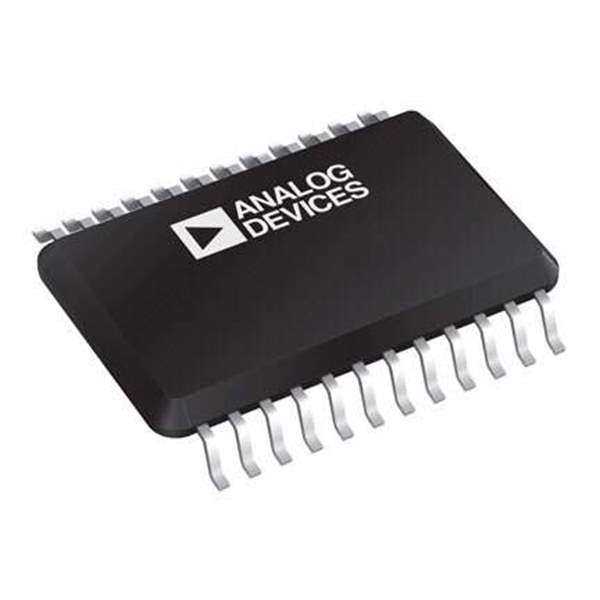

ADUM5411BRSZ-RL7 Digital Isolator by Analog Devices Inc.

The ADUM5411BRSZ-RL7 is a robust digital isolator component manufactured by Analog Devices Inc., renowned for their high-performance semiconductor products. This particular model is part of the ADuM5411 series, which is designed to provide reliable signal isolation in various electronic applications. It is an essential device for ensuring the integrity and safety of electronic systems that require isolation between different signal domains.

Key Features:

• Quad-Channel Isolation: The ADUM5411BRSZ-RL7 features four independent isolation channels, making it versatile for multiple signal isolation needs within a single package.
• Integrated DC-to-DC Converter: This digital isolator comes with an integrated, isoPower® DC-to-DC converter, providing both signal and power isolation, which simplifies PCB design and reduces component count.
• High Data Rate: It supports data rates up to 90 Mbps, ensuring that high-speed signals are transmitted accurately and without delay.
• High-Temperature Operation: The device is capable of operating within a temperature range of -40°C to +125°C, making it suitable for industrial environments.
• Robust Isolation: With an isolation voltage rating of 2.5 kVrms for 1 minute, the ADUM5411BRSZ-RL7 provides a high degree of electrical isolation, protecting sensitive components and users from electrical hazards.
• Package: It is available in a compact, surface-mount 16-lead SOIC package, which is RoHS compliant and suitable for automated assembly processes.

Applications:

The ADUM5411BRSZ-RL7 is ideal for a wide range of applications where isolation is critical. These include:

• Industrial automation and control systems
• Medical equipment with stringent safety requirements
• Power supply management
• Data acquisition systems
• Isolated sensor interfaces

With its high isolation capabilities, integrated power converter, and high-speed data transmission, the ADUM5411BRSZ-RL7 by Analog Devices Inc. is a reliable choice for designers looking to enhance the safety and performance of their electronic systems. Its robust design ensures that it can withstand the rigors of harsh industrial environments while maintaining precise and isolated signal integrity.
