ADV471KP50

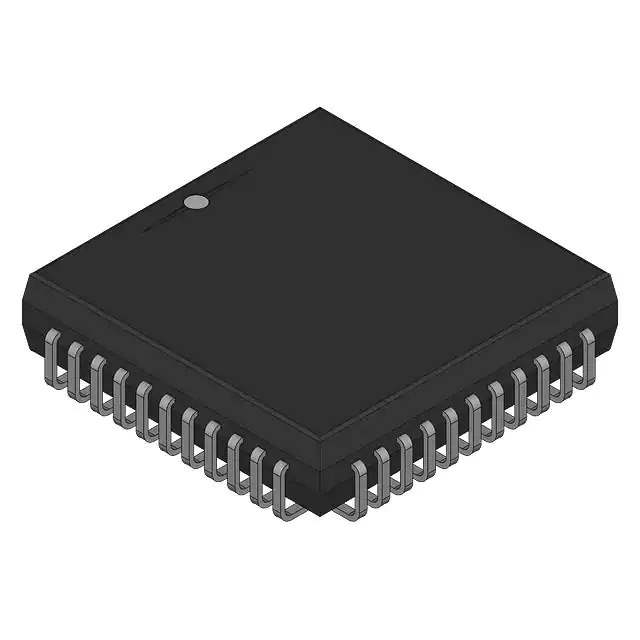

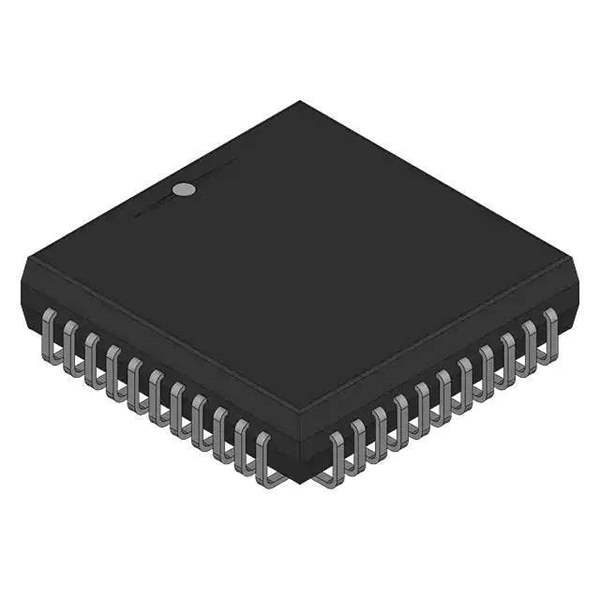

Part No ADV471KP50
Manufacturer Analog Devices Inc.
Catalog Data Acquisition - Digital to Analog Converters (DAC)
Description IC DAC 6, 8 BIT A-OUT 44PLCC
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Data Acquisition - Digital to Analog Converters (DAC)
Mfr Analog Devices Inc.
Series ADV471
Package Bulk
Product Status Active
Programmable Not Verified
Number of Bits 6, 8
Number of D/A Converters 3
Settling Time 20ns (Typ)
Output Type Current - Unbuffered
Differential Output Yes
Reference Type External
Voltage - Supply, Analog 4.5V ~ 5.25V, 4.75V ~ 5.5V
Voltage - Supply, Digital 4.5V ~ 5.25V, 4.75V ~ 5.5V
INL/DNL (LSB) ±1 (Max), ±1 (Max)
Architecture Pipelined
Temperature Range - Operating 0°C ~ 70°C
Package / Case 44-LCC (J-Lead)
Supplier Device Package 44-PLCC (16.59x16.59)
Mounting Type Surface Mount
Standard Package 1 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 44864-ADV471KP50
Ultra Librarian 3D Model Ultra Librarian ADV471KP50 CAD Model

Description

The ADV471KP50, crafted by the renowned semiconductor manufacturer Analog Devices Inc., is a high-performance, 256 x 18 color palette RAM-DAC (Random Access Memory Digital-to-Analog Converter) designed to meet the rigorous demands of high-resolution color graphics and display systems. This integrated circuit is particularly suited for applications that require precise color rendering and high-speed operation, such as computer graphics workstations, digital signal processing, and sophisticated imaging systems.

Key Features

  • Resolution: The ADV471KP50 boasts a 256 x 18 color palette, enabling it to support a wide range of colors and provide exceptional image quality.
  • Speed: With a pixel output rate of up to 135 MHz, this device is capable of driving high-resolution displays without compromising performance.
  • Compatibility: It is designed to interface with both analog and digital systems, providing flexibility in system design.
  • Integrated Triple DACs: The inclusion of three 8-bit DACs ensures accurate color reproduction by independently controlling red, green, and blue intensities.
  • Package: Housed in a 28-pin plastic DIP (Dual In-line Package), the ADV471KP50 is designed for easy integration into a wide array of systems.

Performance and Quality

The ADV471KP50 is engineered to deliver high fidelity and stable color outputs, ensuring that images are rendered with precision and consistency. Analog Devices Inc.'s commitment to quality means that this product has been rigorously tested to perform under various conditions and applications.

Applications

Due to its versatility and performance, the ADV471KP50 is ideal for several advanced applications, including:

  • High-resolution computer graphics workstations
  • Professional video editing and broadcasting
  • Medical imaging equipment
  • Virtual reality systems
  • Simulation and training systems

With its robust feature set and reliable performance, the ADV471KP50 from Analog Devices Inc. is a top-tier component for any system requiring high-quality color graphics display capabilities.
