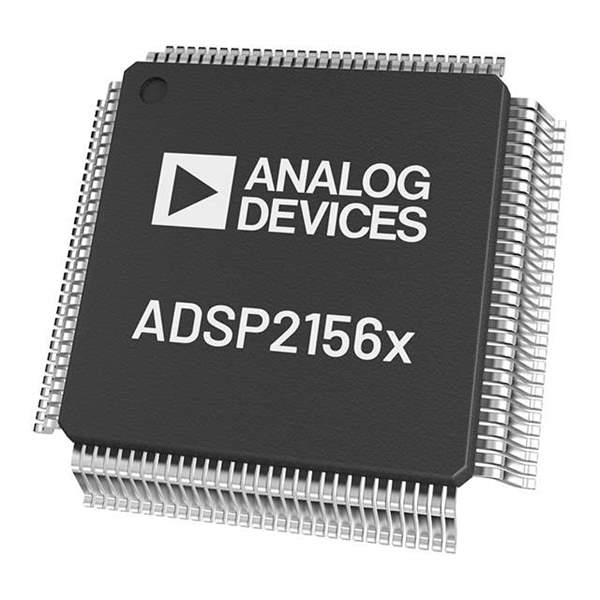

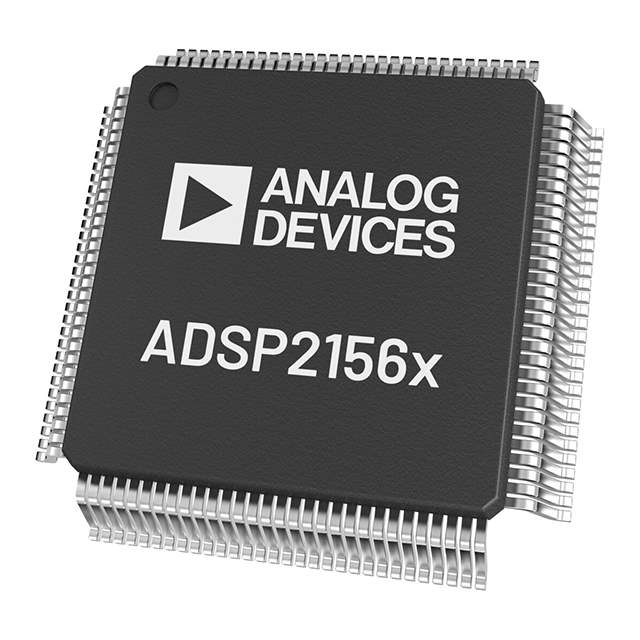

ADSP-21562BSWZ4 - High-Performance Digital Signal Processor

The ADSP-21562BSWZ4 is a cutting-edge digital signal processor (DSP) from the renowned semiconductor manufacturer Analog Devices Inc. Designed for high-performance applications, this processor is part of the ADSP-2156x series, which is known for its exceptional processing power, low power consumption, and advanced features that cater to a wide range of demanding applications.

This DSP is built on a 32-bit SHARC+ core architecture, which delivers superior processing capabilities with a core frequency that can go up to 450 MHz. The ADSP-21562BSWZ4 is equipped with 1024 KB of L1 RAM and 2048 KB of L2 RAM, providing ample memory for complex algorithms and data-intensive tasks. Its dual-core configuration allows for parallel processing, making it an ideal choice for applications that require real-time signal processing.

The ADSP-21562BSWZ4 comes in a 400-ball CSP_BGA package, ensuring a compact footprint for space-constrained designs. It offers a wide range of peripherals including serial ports, SPI, UART, CAN, and Gigabit Ethernet, providing excellent connectivity options for various system requirements. Additionally, the processor supports a 16-channel DMA controller, which enhances data transfer efficiency and reduces CPU overhead.

With its high precision and performance, the ADSP-21562BSWZ4 is ideal for applications in audio processing, industrial control, instrumentation, and medical devices. Its advanced signal processing capabilities make it suitable for sophisticated algorithms like Fast Fourier Transforms (FFTs), filtering, and audio CODECs. Moreover, the DSP supports various development environments and tools, which simplifies the design process and accelerates time-to-market.

Analog Devices Inc. provides comprehensive technical support for the ADSP-21562BSWZ4, including detailed datasheets, reference designs, and application notes. This ensures that designers can fully leverage the capabilities of this powerful DSP to create innovative and efficient solutions for their signal processing challenges.
