The HMC567LC5 from Analog Devices Inc. is a high-performance, wideband Double-Balanced Mixer, designed to meet the needs of RF and microwave applications across various industries. This mixer product is part of the Hittite Microwave Corporation product line, known for its exceptional quality and performance in signal processing components.

Key Features

• Frequency Range: The HMC567LC5 operates over a broad frequency range, making it suitable for diverse applications. Its RF and LO frequency ranges from 6 GHz to 26 GHz, while the IF frequency covers DC to 5 GHz.
• Conversion Loss: Exhibiting a low conversion loss, this mixer ensures minimal signal degradation during the frequency conversion process, providing a clean and reliable output for high-fidelity applications.
• LO/RF Isolation: With excellent LO to RF isolation, the HMC567LC5 helps to minimize leakage between input signals, preserving signal integrity and reducing interference.
• Input IP3: The input third-order intercept point (Input IP3) is a measure of linearity, and the HMC567LC5 boasts a high Input IP3, which allows it to perform well in environments with strong interfering signals.

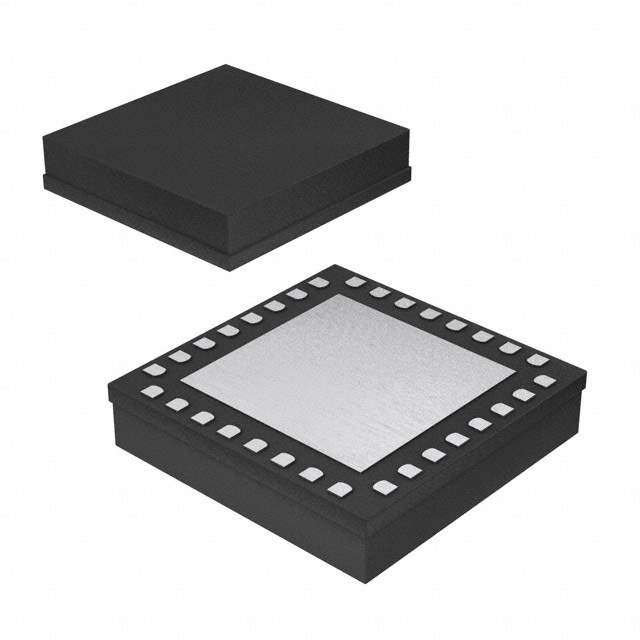

• Package: Housed in a compact 5x5 mm SMT package, the HMC567LC5 is designed for easy integration into a wide array of systems, saving space without compromising on performance.

Applications

The versatility of the HMC567LC5 renders it ideal for a multitude of applications, including but not limited to:

• Point-to-point and point-to-multipoint radios
• Test equipment and sensors
• Military and space
• Telecommunications infrastructure

Quality and Reliability

Analog Devices Inc. is committed to providing high-quality products that meet the rigorous demands of the industries they serve. The HMC567LC5 is manufactured with this commitment in mind, ensuring reliability and performance consistency for critical applications where failure is not an option.
