Product Overview: HMC8413LP2FE

The HMC8413LP2FE is a high-performance, wideband, low noise amplifier (LNA) designed and manufactured by Analog Devices Inc., a renowned leader in the semiconductor industry. This LNA operates over a frequency range of 2 GHz to 30 GHz, making it an ideal choice for a variety of RF and microwave applications, including electronic warfare, communication systems, test equipment, and radar platforms.

Key Features

• Wide Frequency Range: The HMC8413LP2FE operates effectively across a broad spectrum from 2 GHz to 30 GHz, ensuring versatility in its applications.
• High Gain: With a high gain of 17 dB at mid-band, this amplifier can significantly boost signal strength without the need for additional stages.
• Low Noise Figure: The device boasts a low noise figure of 2.5 dB, providing excellent signal clarity and reducing unwanted noise in signal processing.
• Output Power: It delivers a strong output power (P1dB) of 19 dBm, which enables the amplifier to drive subsequent stages in the signal chain effectively.
• Single Supply Voltage: The LNA operates on a single supply voltage of +5V, simplifying power supply design and management.

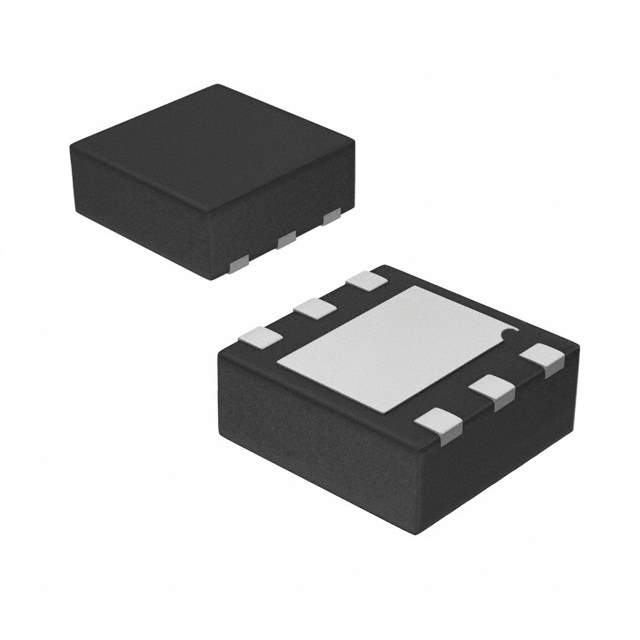

• Compact Package: The HMC8413LP2FE comes in a compact 2mm x 2mm LFCSP package, which is suitable for space-constrained applications.
• RoHS Compliant: In adherence to environmental standards, this product is RoHS compliant, minimizing the use of hazardous substances in its construction.

Applications

Due to its wide frequency range and excellent signal amplification characteristics, the HMC8413LP2FE is well-suited for a variety of high-frequency applications. It is commonly used in:

• Electronic Warfare Systems
• Point-to-Point and Point-to-Multipoint Radios
• Military & Space
• Telecommunications Infrastructure
• Test Instrumentation
• Fiber Optic Applications

Analog Devices Inc. has a reputation for delivering high-quality, reliable components, and the HMC8413LP2FE is no exception. Its robust performance and versatility make it an excellent choice for engineers and designers looking to enhance their RF and microwave systems.
