Product Overview: LT3033EUDC#TRPBF

The LT3033EUDC#TRPBF from Analog Devices Inc. is a high-performance, dual-channel, low-dropout linear regulator (LDO) designed to deliver precision voltage regulation for demanding applications. This advanced power management solution is ideal for systems requiring a dual supply with a common input voltage, such as industrial controls, automotive electronics, and telecommunications equipment.

Key Features

• Dual Independent Outputs: The LT3033 provides two independently regulated outputs, each capable of delivering up to 3A of continuous output current. This feature allows for versatile power supply designs catering to different voltage requirements within the same system.
• Wide Input Voltage Range: With an input voltage range of 1.8V to 20V, the device can accommodate a variety of power sources, making it suitable for battery-powered and line-powered applications.
• Low Dropout Voltage: The low dropout voltage ensures efficient operation even when the input-to-output voltage differential is minimal, thus preserving battery life and reducing heat dissipation.
• Adjustable Output Voltage: The output voltage for each channel can be set from 0.6V to 19V via external resistors, providing design flexibility to match specific circuit requirements.
• Excellent Load and Line Regulation: The LT3033 maintains a stable output voltage despite variations in input voltage and output load, ensuring reliable performance under all operating conditions.
• Thermal Protection: Built-in thermal shutdown and current limit protection safeguard the device and the load from damage due to overheating and overcurrent conditions.
• Low Noise: The LT3033 features low output noise characteristics, which is critical for sensitive RF and precision analog circuits.

Package and Availability

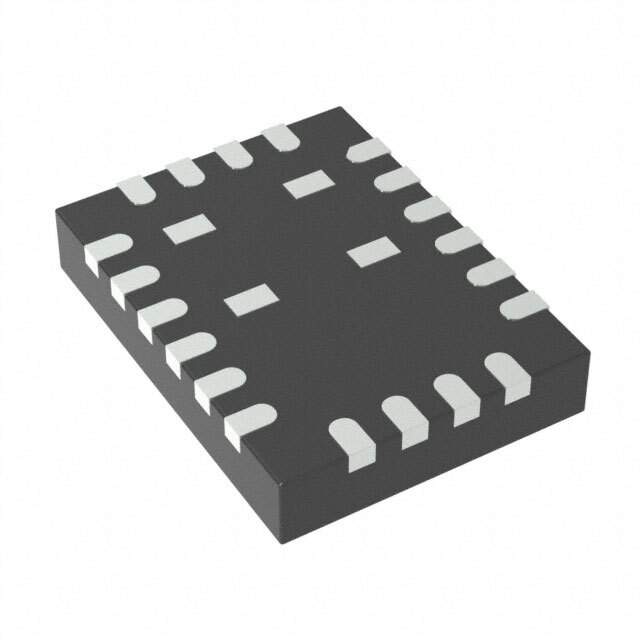

The LT3033EUDC#TRPBF is packaged in a compact, thermally efficient 20-lead QFN package, which is RoHS compliant and suitable for space-constrained applications. The device is available in tape and reel packaging, facilitating easy integration into automated manufacturing processes.

Applications

• Power Supplies for RF and Mixed-Signal ICs
• Automotive Electronics
• Telecommunications Infrastructure
• Industrial Control Systems
• Portable and Battery-Powered Equipment

With its robust feature set, the LT3033EUDC#TRPBF from Analog Devices Inc. is a versatile power management solution that ensures precise voltage regulation and system reliability across a broad range of applications.
