The LT3081EDF is a versatile and robust linear regulator from Analog Devices Inc., designed to cater to a wide array of power management requirements. This innovative component is part of the LDO (low dropout) regulator family, offering high performance with an adjustable output from 0 to 36V. The LT3081EDF stands out for its unique architecture that allows for an easy-to-use, flexible, and reliable solution for various applications.

Key Features:

• Wide Input Voltage Range: The device can handle input voltages from 1.2V up to 40V, making it suitable for diverse applications, from low-voltage electronics to industrial systems.
• Adjustable Output: It provides an adjustable output voltage from 0 to 36V, which can be set with a single resistor. This feature allows for precision tailoring to specific circuit requirements.
• High Output Current: The LT3081EDF can deliver up to 1.1A of output current, ensuring sufficient power for a multitude of devices.
• Stable with Low ESR Capacitors: The regulator remains stable with ceramic, tantalum, or aluminum electrolytic capacitors, offering flexibility in design choices and reducing noise.
• Thermal Protection: Integrated thermal shutdown and current limiting protect the device and the application from over-current and overheating scenarios.

Applications:

The LT3081EDF is ideal for use in a variety of applications, including but not limited to:

• Power Supplies
• Post-Regulation for Switching Supplies
• Battery Charging
• LED Driving
• Automotive Electronics

Package and Quality:

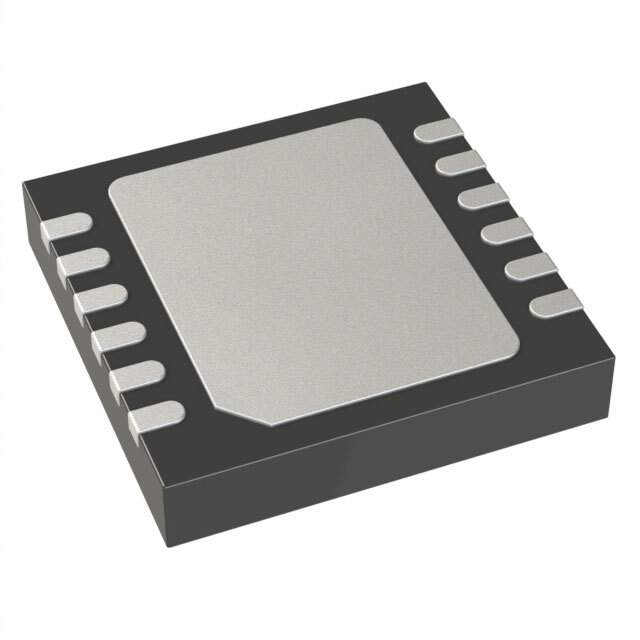

The LT3081EDF is offered in a 12-lead DFN (4mm x 3mm) package, which is both space-efficient and suitable for automated assembly processes. Analog Devices Inc. ensures high-quality standards, with the LT3081EDF being RoHS compliant and suitable for commercial and industrial temperature ranges.

With its comprehensive features and dependable performance, the LT3081EDF linear regulator is a top choice for designers looking for a reliable power management solution.
