Analog Devices Inc. LTC3309AHV#TRMPBF Overview

The LTC3309AHV#TRMPBF is a high-performance, synchronous step-down switching regulator from Analog Devices Inc., designed to cater to a wide range of power supply applications. This advanced regulator is capable of delivering continuous output currents up to 3A with a high efficiency that is maintained over a broad load range, making it an ideal choice for portable devices, industrial equipment, and automotive applications.

Key Features

• Wide Input Voltage Range: The LTC3309AHV#TRMPBF operates from an input voltage range of 3.4V to 42V, making it suitable for applications with varying supply voltages, including those powered by multi-cell batteries or industrial power supplies.
• High Efficiency: The device is optimized for efficiency, featuring low RDS(ON) internal switches that minimize unnecessary power loss and extend battery life in portable applications.
• Adjustable Output Voltage: The output voltage is adjustable from 0.6V to the input voltage, providing flexibility to power a wide range of devices.
• Fast Transient Response: The LTC3309AHV#TRMPBF is designed with a fast transient response, ensuring stable operation even during sudden changes in load.
• Thermal Protection: It includes thermal protection features that safeguard the device from overheating, thereby ensuring reliable performance under various operating conditions.
• Low Dropout Operation: The regulator can maintain output regulation during low input voltage conditions, which is essential for applications that experience significant drops in supply voltage.

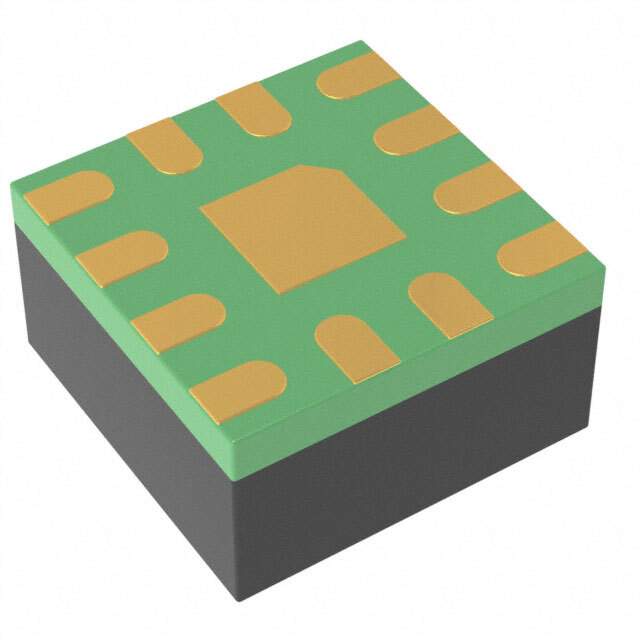

• Compact Packaging: Available in a 3mm x 3mm QFN package, the LTC3309AHV#TRMPBF is designed for space-constrained applications.

Applications

The LTC3309AHV#TRMPBF's robust feature set makes it suitable for a diverse array of applications, including:

• Automotive electronics
• Portable instruments
• Industrial power systems
• Data communication devices
• Point-of-load applications

With its combination of wide input voltage range, high efficiency, and flexible output voltage configuration, the LTC3309AHV#TRMPBF from Analog Devices Inc. is an excellent choice for designers looking for a reliable and versatile power management solution.
