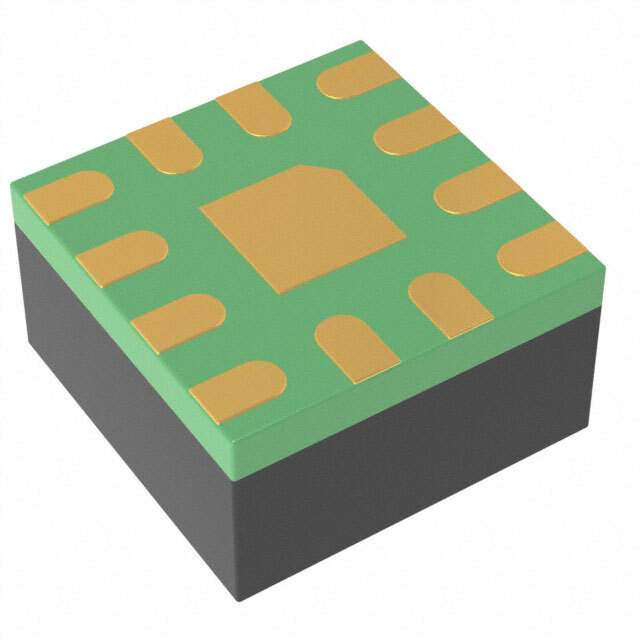

Product Overview: LTC3315AEV#TRPBF

The LTC3315AEV#TRPBF is a high-performance, synchronous step-down DC/DC converter brought to you by Analog Devices Inc., a leader in the field of high-performance analog integration. This advanced power management integrated circuit (PMIC) is designed to deliver continuous load currents up to 3A with high efficiency, making it an ideal solution for portable devices, industrial applications, and automotive systems.

With a wide input voltage range of 2.25V to 5.5V, the LTC3315AEV#TRPBF is versatile and can operate from a variety of power sources, including single-cell Li-Ion batteries, multi-cell alkaline batteries, or regulated 5V power supplies. The device features a fixed frequency, current mode architecture, which provides fast transient response and excellent loop stability.

The LTC3315AEV#TRPBF boasts a high efficiency of up to 95%, which is achieved through its low R_DS(ON) internal switches. The device also includes a selectable Burst Mode® operation that significantly reduces quiescent current during light load conditions, thereby extending battery life in portable applications.

Key features of this converter include an adjustable output voltage range from 0.6V to the input supply, a programmable switching frequency from 1MHz to 4MHz, and a synchronization capability to an external clock. Additionally, it possesses robust thermal performance due to its thermally enhanced 3mm x 3mm QFN package.

Safety and protection are paramount in the design of the LTC3315AEV#TRPBF. It includes over-temperature protection, over-current protection, and a power good flag that indicates when the output is within regulation. These features ensure reliable operation under a variety of conditions and protect both the converter and the load.

In summary, the LTC3315AEV#TRPBF from Analog Devices Inc. is a compact, efficient, and versatile step-down converter that meets the stringent requirements of modern electronic devices. Whether for portable gadgets or industrial machinery, this PMIC stands out for its performance, durability, and ease of integration.
