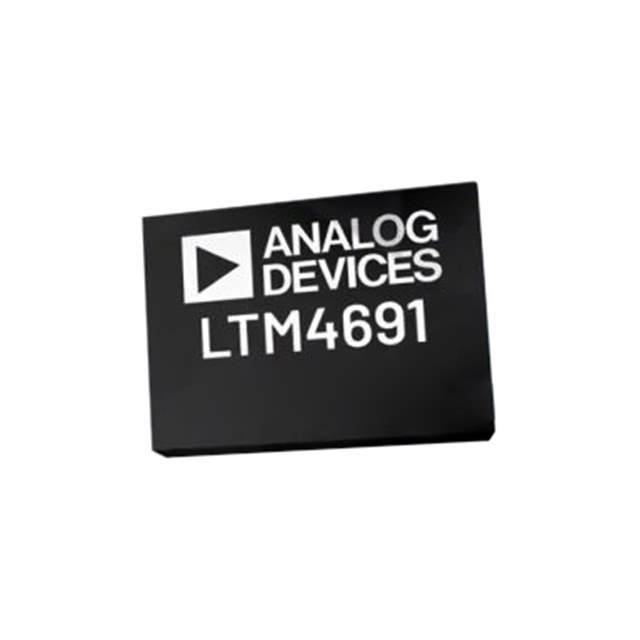

Introducing the LTM4691EY#PBF from Analog Devices Inc.

The LTM4691EY#PBF is a highly integrated, low voltage, dual 10A or single 20A ultrathin step-down µModule (micromodule) regulator from the renowned manufacturer Analog Devices Inc. This cutting-edge product is designed to meet the needs of space-constrained applications in telecommunications, networking, and industrial markets, providing efficient power delivery with a minimal footprint.

Key Features

• High Efficiency: With its advanced design, the LTM4691EY#PBF achieves high efficiency at different load conditions, which makes it an ideal solution for systems that demand energy-saving capabilities.
• Compact Design: The µModule technology integrates the inductor, power FETs, and all supporting components into a compact 11.25mm x 9mm x 2.22mm BGA package. This allows for a streamlined design process and saves valuable board space.
• Versatility: This device can be configured as a dual 10A output or a single 20A output, offering flexibility for various design requirements.
• Wide Input Voltage Range: The LTM4691EY#PBF operates over a 3.1V to 20V input supply range, accommodating a variety of power sources.
• Adjustable Output Voltage: The output voltage is adjustable from 0.5V to 5.5V, which makes it suitable for powering a wide range of low voltage digital ICs.
• Advanced Thermal Management: Its ultrathin profile and BGA package enhance thermal performance, ensuring reliable operation even in thermally challenging environments.
• Integrated Fault Protection: The device includes overvoltage, overcurrent, and over-temperature protection features to safeguard against potential damage from abnormal operating conditions.

Applications

The LTM4691EY#PBF is tailored for applications that require a high-density power solution with a low profile, such as:

• Datacom and Telecom Systems
• Enterprise Servers and Storage
• Industrial Equipment
• Medical Devices
• Networking Equipment

With its robust feature set and compact size, the LTM4691EY#PBF from Analog Devices Inc. is an exemplary solution for designers looking to optimize power management in their next-generation electronic systems.
