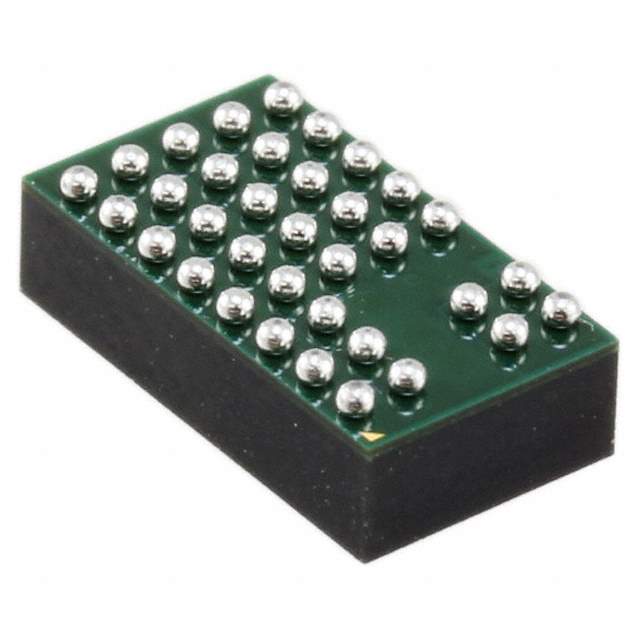

Analog Devices Inc. LTM8029MPY: A Robust µModule Regulator

The LTM8029MPY is a high-performance DC/DC step-down power module regulator designed by Analog Devices Inc. This compact, feature-rich component is part of the µModule (micro module) series, which encapsulates a switching regulator and all its necessary components, including inductors, capacitors, and resistors, in a single surface-mount package. Aimed at simplifying design and shortening time-to-market, the LTM8029MPY is suitable for a wide range of applications, including industrial, automotive, and communications equipment.

The LTM8029MPY operates over an input voltage range of 6V to 36V and provides an adjustable output voltage from 0.8V to 10V, making it versatile for various applications that require different voltage levels. It is capable of delivering up to 10A of continuous output current, with excellent power efficiency. This high level of integration ensures reliability and performance while reducing the solution footprint on the PCB.

One of the key features of the LTM8029MPY is its robustness. It is designed to operate in harsh environments, with an operating temperature range of -55°C to +125°C. This makes it an ideal choice for automotive and industrial applications where extreme temperatures are common. Additionally, the module is encapsulated, providing enhanced protection against environmental stresses such as moisture and dust.

The LTM8029MPY also offers a range of protective features to ensure the longevity and stability of the end application. These include overvoltage, overcurrent, and over-temperature protection, as well as an internal soft-start feature to reduce inrush current during startup. The device is also designed with a frequency synchronization feature to minimize system noise, which is critical in noise-sensitive applications.

For design flexibility, the LTM8029MPY supports paralleling multiple units for increased output current, while its compact (15mm x 15mm x 4.92mm) LGA package allows for efficient use of board space. The module is RoHS compliant and adheres to the rigorous quality standards of Analog Devices Inc., ensuring reliability and performance for critical applications.
