Product Overview: HMC1086F10 - Analog Devices Inc.

The HMC1086F10 from Analog Devices Inc. is a high-performance, wideband, GaAs MMIC Power Amplifier that operates within the frequency range of 2 to 20 GHz. This versatile amplifier is designed to deliver exceptional output power and gain while maintaining excellent power-added efficiency, making it an ideal choice for a broad range of applications including test instrumentation, electronic warfare, and communication systems.

Key Features

• Frequency Range: 2 to 20 GHz, providing wideband capability for various applications.
• High Output Power: Delivers +32 dBm of saturated output power, ensuring robust signal amplification.
• High Gain: Offers 16 dB of small signal gain with excellent gain flatness over the entire frequency range.
• Power-Added Efficiency: Features a power-added efficiency (PAE) of 25%, optimizing system performance.
• Input/Output Match: Achieves a good input and output match which simplifies system integration.

Applications

• Electronic Countermeasures (ECM)
• Test and Measurement Equipment
• Telecommunications and Satellite Communications
• Point-to-Point and Point-to-Multipoint Radios
• Military and Space

Product Specifications

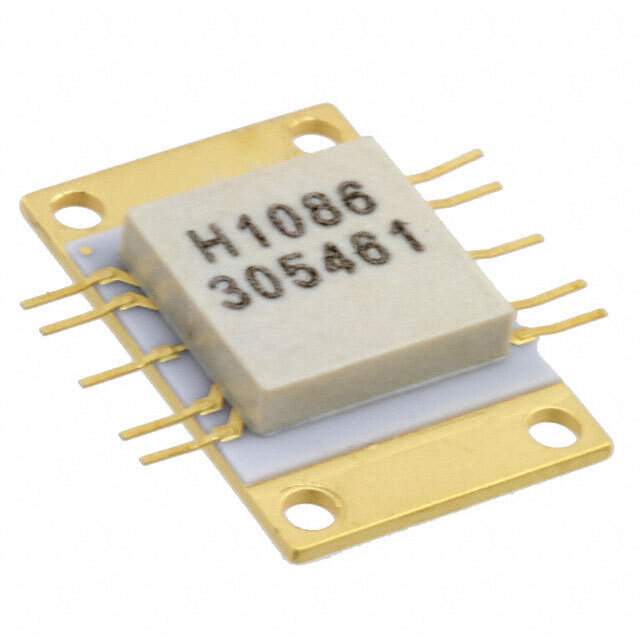

The HMC1086F10 is housed in a compact 10-lead flange mount package that offers excellent thermal performance and is suitable for high reliability applications. It operates over a temperature range of -55°C to +85°C, making it reliable in extreme conditions. The amplifier is also RoHS compliant, adhering to environmental standards.

Quality and Reliability

Analog Devices Inc. is known for its commitment to quality and reliability, and the HMC1086F10 is no exception. It is fabricated using a GaAs PHEMT process which provides superior performance compared to conventional silicon technologies. Customers can expect consistent performance and durability from this high-quality product.
