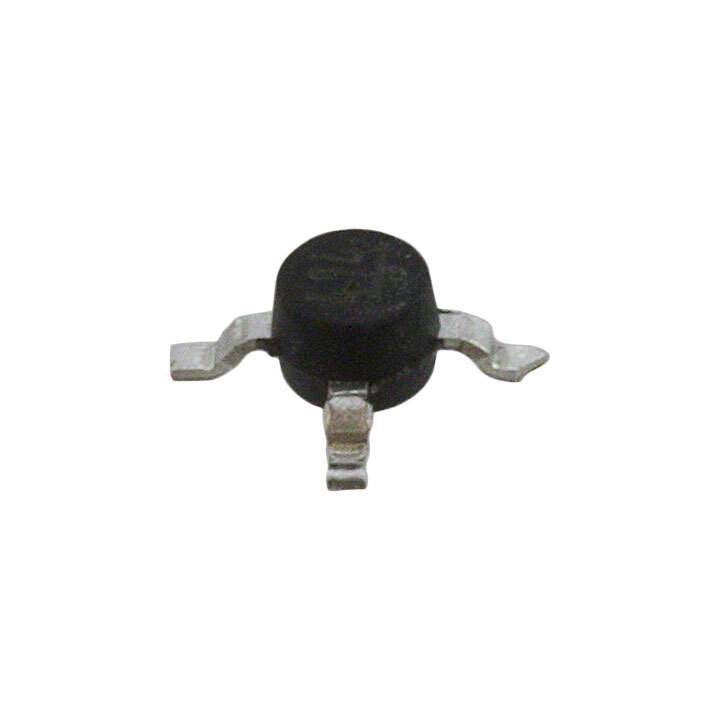

The HMC481MP86E from Analog Devices Inc. is a gallium arsenide (GaAs), pseudomorphic high electron mobility transistor (pHEMT), monolithic microwave integrated circuit (MMIC) amplifier designed to deliver exceptional performance across a wide range of frequencies. Targeted for use in telecommunications, satellite communications, and test equipment, this MMIC amplifier provides a perfect solution for applications requiring high linearity and a wide dynamic range.

Key Features

• Frequency Range: The HMC481MP86E operates over a broad frequency range from DC to 22 GHz, making it highly versatile for various RF and microwave applications.
• Gain: It offers a high gain of 20 dB, which is stable over the entire frequency range, ensuring consistent performance and signal amplification.
• Output Power: With an output power of +22 dBm at 1 dB gain compression (P1dB), the amplifier can drive a wide range of components without the need for additional stages.
• Output IP3: The third-order intercept point (IP3) of +33 dBm indicates excellent linearity, reducing distortion in complex signal environments.
• Supply Voltage: It operates on a single positive supply voltage of +5V, simplifying power supply design and integration.
• Package: The HMC481MP86E comes in a compact 3x3 mm surface-mount QFN package, making it suitable for space-constrained applications.

Applications

• Point-to-Point and Point-to-Multipoint Radios
• VSAT
• Military & Space
• Test Instrumentation
• Fiber Optic Applications

With its robust design and high reliability, the HMC481MP86E is an ideal choice for designers looking for an amplifier that can deliver high performance with minimal external components. Analog Devices Inc. ensures that this MMIC amplifier meets stringent quality standards, providing a reliable and efficient solution for high-frequency signal amplification needs.
