Analog Devices Inc. HMC588LC4B Overview

The HMC588LC4B from Analog Devices Inc. is a high-performance, wideband, fully differential amplifier that is designed to offer excellent dynamic range and precision for a variety of demanding applications. This amplifier is part of the Hittite Microwave Corporation product line that has been integrated into Analog Devices, which is known for providing innovative solutions in RF, microwave, and millimeter-wave technologies.

Key Features

• Frequency Range: The HMC588LC4B operates over a wide frequency range from DC to 10 GHz, making it incredibly versatile for applications across different frequency spectrums.
• Gain: It offers a high gain of 10 dB which is beneficial in signal amplification without the need for additional stages.
• Output Power: With an output power of +18 dBm at 1 dB compression point, this amplifier can drive a wide range of components and systems.
• Low Noise Figure: The low noise figure of 3.5 dB ensures that signal integrity is maintained even in noise-sensitive applications.
• Single Supply Voltage: The device can be powered by a single +5V supply, simplifying power supply design.

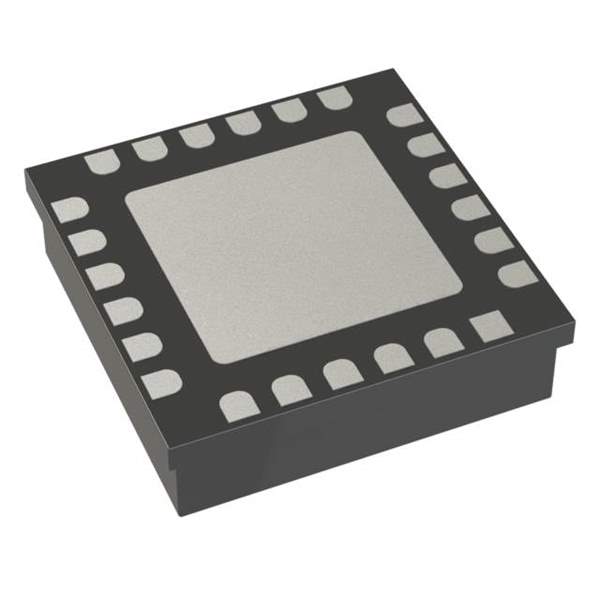

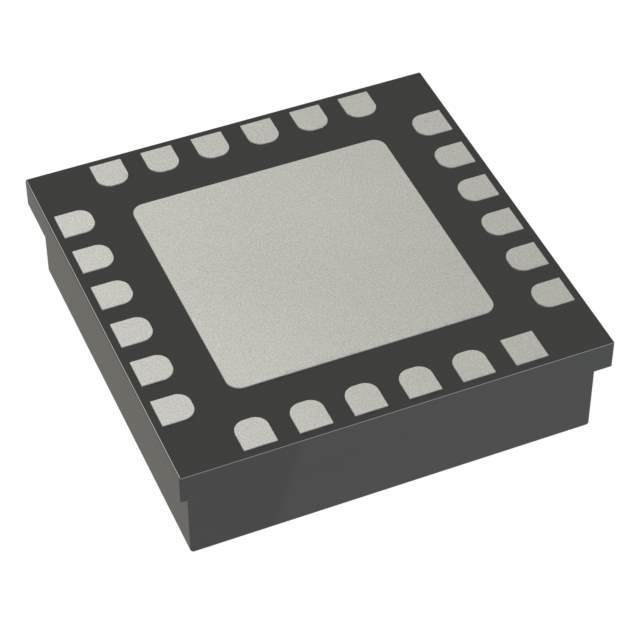

• Package: The HMC588LC4B comes in a compact 4x4 mm surface-mount leadless chip carrier package, which saves board space and is suitable for high-density circuit designs.

Applications

The amplifier's broad frequency range and high performance make it ideal for use in:

• Fiber Optic and Broadband Telecom Equipment
• Microwave Radio and VSAT
• Test Instrumentation
• Military and Space
• Mixed Signal Applications

Conclusion

The HMC588LC4B from Analog Devices Inc. represents a blend of performance and versatility, making it a top choice for engineers and designers who require a reliable amplifier that can handle a wide range of frequencies and applications. Its integration into high-speed communication systems and test equipment ensures that the HMC588LC4B will continue to be a pivotal component in the advancement of high-frequency technology.
