Product Overview: LT3032EDE-5#TRPBF

The LT3032EDE-5#TRPBF is a high-quality, dual-channel, low-dropout linear regulator (LDO) designed and manufactured by Analog Devices Inc. This component is specifically engineered to provide precise voltage regulation with a minimal voltage drop, making it an ideal choice for sensitive electronic applications where stable and reliable power is essential.

Key Features

• Dual Output Voltages: This LDO provides two independent output voltages, 5V each, which allows for versatile applications in a single package.
• Low Noise: With its advanced design, the LT3032EDE-5#TRPBF offers exceptionally low noise performance, which is critical for applications such as RF circuits and precision instrumentation.
• Low Dropout Voltage: The device operates with a very low dropout voltage, ensuring efficient operation even when the input-to-output voltage differential is small.
• High Output Current: Each output can deliver up to 150mA of current, providing sufficient power for a wide range of devices.
• Stable with Low ESR Capacitors: The regulator is stable with ceramic capacitors that have low equivalent series resistance (ESR), offering flexibility in design and reducing the need for bulky capacitors.
• Thermal Protection: Built-in thermal shutdown protection safeguards the device from damage due to overheating.

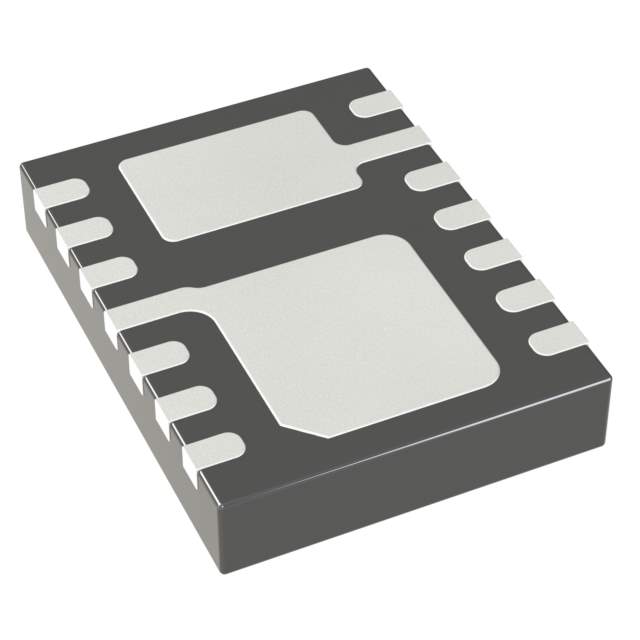

• Package: The device comes in a 14-lead DFN package, which is compact and suitable for space-constrained applications.

Applications

The LT3032EDE-5#TRPBF is well-suited for a range of applications that require dual, regulated power supplies. These include but are not limited to:

• Portable Battery-Powered Devices
• Low Noise Instrumentation
• RF Applications
• Microprocessor Power Supplies
• Industrial Control Systems

In summary, the LT3032EDE-5#TRPBF from Analog Devices Inc. is a versatile, high-performance dual LDO that meets the needs of various high-end applications. Its low noise output, high current capability, and compatibility with low ESR capacitors make it a reliable and flexible choice for designers looking to optimize their power supply solutions.
