The LT337AT#PBF is a high-performance, adjustable negative voltage regulator designed and manufactured by Analog Devices Inc. This regulator is capable of supplying in excess of 1.5A over an output voltage range of -1.2V to -37V. It is a versatile component that is used in a variety of applications, ranging from simple power supplies to complex programmable instruments.

Key Features

• Adjustable Output: The output voltage can be set to any value from -1.2V to -37V with only two external resistors. This feature provides flexibility and precision for a wide range of applications.
• Current Capability: The LT337AT#PBF can deliver up to 1.5A, making it suitable for applications requiring a high current supply.
• Thermal Protection: The device includes an internal thermal overload protection system that shuts down the regulator to prevent damage from overheating.
• Current Limiting: Built-in current limiting protects the device and the load from fault conditions.
• Low Ground Pin Current: The ground pin current of the LT337AT#PBF is typically 8mA when the regulator is supplying 1.5A. This low ground current contributes to the overall efficiency of the regulator.

Applications

• High-efficiency linear regulators
• Constant current regulators
• Adjustable power supplies
• Battery chargers
• Driver for low voltage transistors

Quality and Reliability

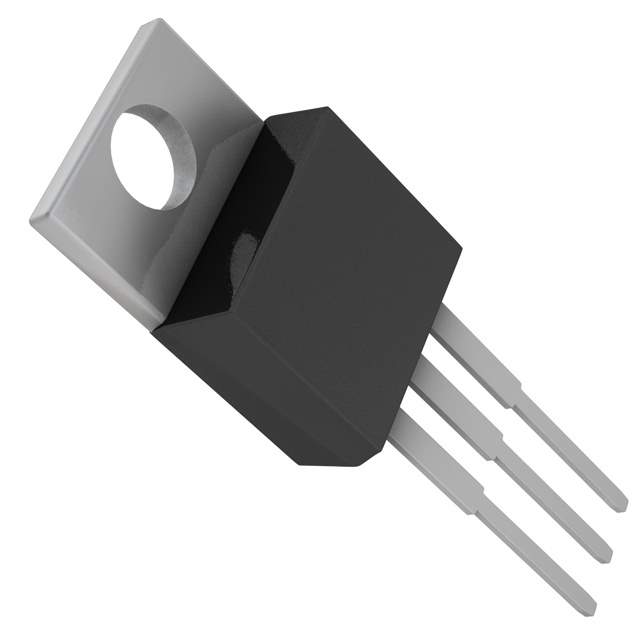

Analog Devices Inc. is known for its commitment to quality and reliability, and the LT337AT#PBF is no exception. Each unit undergoes rigorous testing to ensure it meets the highest standards. The product is available in a TO-220 package, which is designed for optimal thermal performance and durability.

Ordering Information

The part number LT337AT#PBF indicates the product is provided in a lead-free finish, adhering to the latest environmental standards. For detailed ordering and shipping information, customers should consult the Analog Devices Inc. website or contact their local sales representative.
