Analog Devices Inc. LT3651IUHE-4.2#PBF Battery Charger IC

The LT3651IUHE-4.2#PBF is a highly efficient, single-cell, 4.2V lithium-ion/polymer battery charger IC from the reputable Analog Devices Inc. This sophisticated integrated circuit is designed to optimize the charging process for portable devices, ensuring a safe and rapid charge cycle for high-capacity batteries.

With an operating voltage range from 4.95V to 32V, the LT3651IUHE-4.2#PBF can handle a wide array of power sources, including solar panels, making it an ideal choice for diverse applications. Its adjustable charge current up to 2A allows users to tailor the charging process to the needs of their specific battery, while the IC's final float voltage accuracy of ±0.35% ensures a precise and full charge every time.

The LT3651IUHE-4.2#PBF incorporates an array of safety features that protect both the battery and the charger itself. It includes programmable charge current limits, which prevent overheating and overcharging, and thermal regulation, which automatically adjusts the charge current to maintain a safe temperature. Additionally, the IC has an automatic recharge feature that initiates a new charging cycle if the battery voltage falls below a set threshold, maintaining the battery's charge over extended periods of non-use.

One of the standout features of the LT3651IUHE-4.2#PBF is its C/10 charge termination, which stops the charging process when the current falls to one-tenth of the programmed maximum, indicating a full battery. Moreover, the charger IC supports an instant-on feature even with a depleted battery, providing system power immediately when a source is connected, which is critical for applications requiring uninterrupted power.

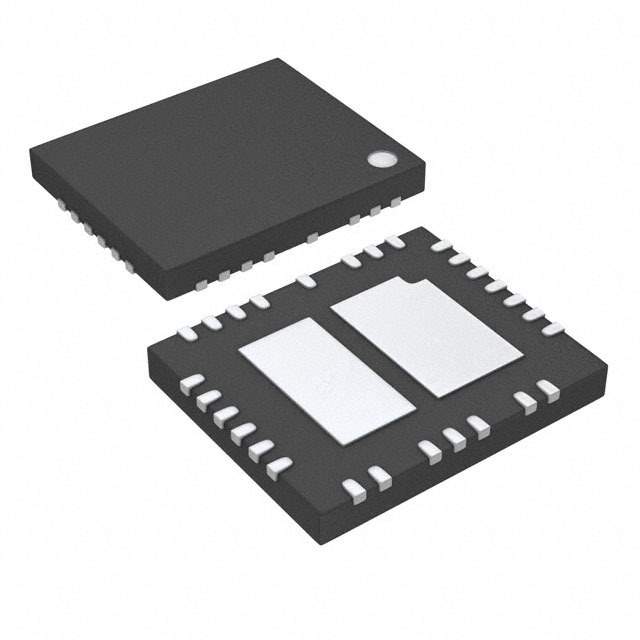

The IC is housed in a compact 3mm x 3mm QFN package, making it suitable for space-constrained applications. Its small footprint, combined with a minimal external component count, allows for a cost-effective and efficient design for any portable charging solution. The LT3651IUHE-4.2#PBF is also characterized by its robustness and reliability, with built-in protection against reverse battery installation and short-circuit conditions.

Overall, the LT3651IUHE-4.2#PBF from Analog Devices Inc. is a versatile and reliable solution for modern battery charging applications, offering both performance and peace of mind for designers and end-users alike.
