Product Overview: LT3689HMSE-5#TRPBF

The LT3689HMSE-5#TRPBF is a high-performance step-down switching regulator from Analog Devices Inc., a leader in the design and manufacturing of high-performance analog integrated circuits. This regulator is designed to deliver a fixed 5V output from a wide input voltage range, making it ideal for a variety of applications, including industrial, automotive, and telecommunications systems.

Key Features:

• Wide Input Voltage Range: The LT3689HMSE-5#TRPBF operates from an input voltage range of 4.5V to 36V, accommodating a variety of power sources and ensuring stable operation even during supply fluctuations.
• Fixed 5V Output Voltage: The device provides a regulated 5V output, which is commonly required for digital circuits, microcontrollers, and other logic-level devices.
• High Efficiency: With its advanced design, the regulator maintains high efficiency across a wide range of load currents, minimizing power loss and heat generation.
• Adjustable Switching Frequency: Users can set the switching frequency from 300kHz to 2.2MHz with an external resistor, allowing flexibility in optimizing the balance between efficiency and external component size.
• Thermal Protection: The device includes thermal shutdown protection, which helps prevent damage from overheating by automatically shutting down the regulator if the internal temperature exceeds safe operating limits.

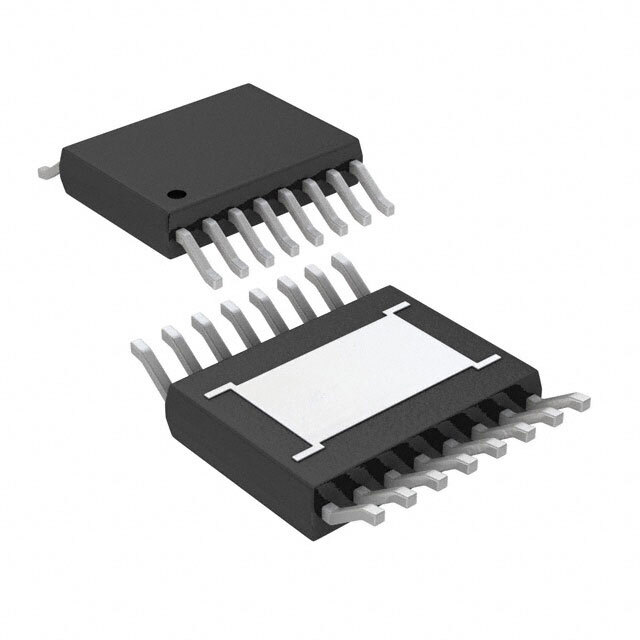

• Robust Packaging: The LT3689HMSE-5#TRPBF is offered in a thermally efficient MSOP-16E package, which is suitable for space-constrained applications while providing excellent thermal performance.

Applications:

The versatility of the LT3689HMSE-5#TRPBF makes it suitable for a wide array of applications. It is particularly well-suited for automotive power systems, where the wide input voltage range can handle the variable conditions of automotive batteries. It is also ideal for powering microcontrollers and other sensitive electronics in industrial control systems, where stable voltage is critical for reliable operation. Additionally, the compact size and adjustable frequency make it a good choice for portable and space-limited applications such as handheld devices.

Conclusion:

The LT3689HMSE-5#TRPBF from Analog Devices Inc. is a robust and flexible step-down switching regulator designed to meet the needs of a broad spectrum of applications. With its wide input voltage range, fixed 5V output, high efficiency, and thermal protection, it offers a reliable power solution for designers looking to optimize their power management systems.
