Analog Devices Inc. LT5514EFE#PBF Product Overview

The LT5514EFE#PBF from Analog Devices Inc. is a high-performance downconverting mixer with an integrated local oscillator (LO) buffer amplifier. This advanced component is designed to offer exceptional linearity and noise performance in a variety of radio frequency (RF) applications, including wireless infrastructure, broadband communications, and test equipment.

The LT5514EFE#PBF operates over a wide frequency range, providing users with the flexibility to use it in multiple RF bands. Its input frequency range spans from 40MHz to 900MHz, making it suitable for a broad array of communication standards. The integrated LO buffer simplifies the design by reducing the number of external components required, which in turn minimizes the overall system footprint and cost.

This mixer boasts a high linearity with an input IP3 (third-order intercept point) of 24dBm, which is critical for maintaining signal integrity in the presence of strong interfering signals. Additionally, the LT5514EFE#PBF offers a low noise figure, typically around 11.3dB, ensuring that the signal-to-noise ratio is preserved throughout the downconversion process.

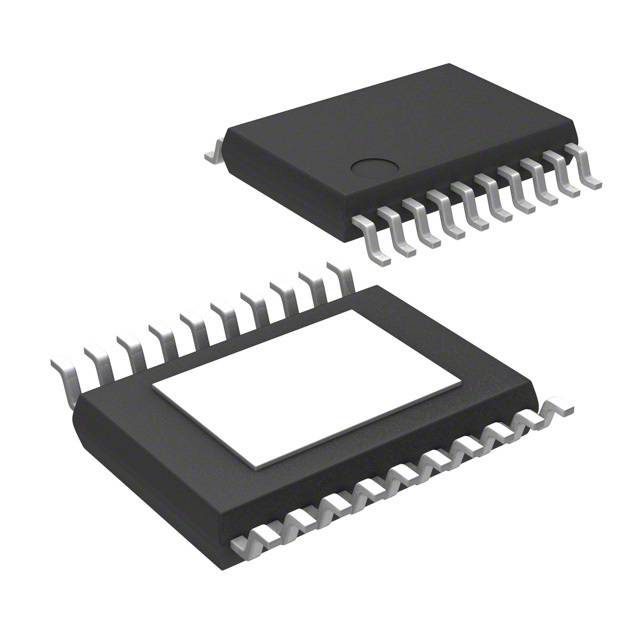

The device is encapsulated in a compact 16-lead plastic TSSOP package with an exposed pad for enhanced thermal performance. This makes it an excellent choice for space-constrained applications where maintaining a small form factor is essential. The part number suffix 'EFE' denotes the performance grade and package type, while 'PBF' indicates that the component is lead-free and RoHS compliant, adhering to environmental standards.

Key features of the LT5514EFE#PBF include:

• Wide RF input frequency range: 40MHz to 900MHz
• High linearity with an input IP3 of 24dBm
• Low noise figure: 11.3dB typical
• Integrated LO buffer amplifier
• 16-lead plastic TSSOP package with exposed pad
• Lead-free and RoHS compliant

In summary, the LT5514EFE#PBF from Analog Devices Inc. is a versatile and efficient solution for RF downconversion, offering a combination of high performance, integration, and environmental compliance that makes it ideal for a wide range of applications in the RF domain.
