Analog Devices Inc. LTC1859CG#PBF Product Overview

The LTC1859CG#PBF is a high-performance, 16-bit analog-to-digital converter (ADC) from Analog Devices Inc., designed to provide precise data conversion from analog signals to digital form with a fast throughput rate. This ADC is a part of the LTC1859 series, which is renowned for its high accuracy and ease of use in a variety of applications, including industrial process control, medical equipment, and data acquisition systems.

One of the key features of the LTC1859CG#PBF is its eight-channel multiplexer, which allows for multiple single-ended inputs or four differential inputs, giving designers flexibility in their system design. The input range is programmable, which means it can be adjusted to accept ±10V, ±5V, 0-10V, or 0-5V inputs, ensuring compatibility with a wide range of sensors and signal sources.

The device operates with a conversion time of just 2.5 microseconds, ensuring rapid data acquisition, which is crucial for real-time applications. The impressive throughput rate does not compromise the quality of the data, as the LTC1859CG#PBF maintains excellent linearity with a no missing codes performance. It also features a high signal-to-noise ratio (SNR), which guarantees that the digital output closely represents the original analog signal.

Integration with digital systems is made simple with the LTC1859CG#PBF's parallel interface. The ADC supports both straight binary and two's complement data formats, making it versatile for different digital system requirements. Furthermore, the device includes a shutdown mode that reduces power consumption when the ADC is not in active conversion, which is particularly important for portable or energy-sensitive applications.

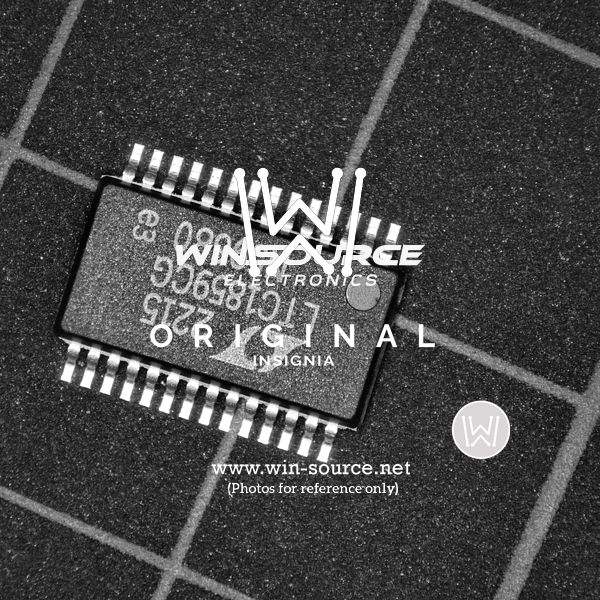

The LTC1859CG#PBF comes in a 28-pin SSOP (Shrink Small Outline Package) that is designed to occupy minimal board space while still providing robust performance. This package is well-suited for dense PCB layouts where space is at a premium.

Overall, the LTC1859CG#PBF ADC from Analog Devices Inc. is a reliable choice for engineers and designers looking for a high-speed, high-precision data conversion solution. Its programmable input range, multiple channel options, and easy interface with digital systems make it a versatile and efficient component for advanced electronic designs.
