Analog Devices Inc. LTC3310SIV-1#WTRMPBF

The LTC3310SIV-1#WTRMPBF is a state-of-the-art, high-efficiency, synchronous step-down monolithic regulator from Analog Devices Inc., a leader in high-performance analog technology. This product is designed to deliver continuous load currents up to 10A with a wide input voltage range, making it a versatile solution for a variety of applications including telecommunications, networking equipment, and portable devices.

With its advanced design, the LTC3310SIV-1#WTRMPBF provides excellent power efficiency and fast transient response, ensuring reliable performance even under demanding conditions. The regulator operates over an input voltage range from 2.25V to 5.5V, which allows it to accommodate a broad spectrum of power sources, from single-cell Li-Ion batteries to intermediate bus voltages.

The LTC3310SIV-1#WTRMPBF features a high switching frequency that can be adjusted from 2MHz to 4MHz, enabling the use of small, low-cost capacitors and inductors, thus reducing the overall solution footprint and cost. Additionally, the device supports selectable Burst Mode® operation, which significantly improves efficiency at light loads and reduces standby power consumption, making it ideal for battery-powered applications.

Key features of the LTC3310SIV-1#WTRMPBF include:

• High efficiency: Capable of up to 95% efficiency, reducing heat dissipation and improving system reliability.
• Low dropout operation: Ensures consistent performance even when the input voltage is close to the output voltage.
• Programmable soft-start: Limits inrush current during startup, providing a controlled power-up sequence.
• Over-temperature and over-current protection: Enhances system safety and longevity by preventing damage due to excessive heat or current conditions.

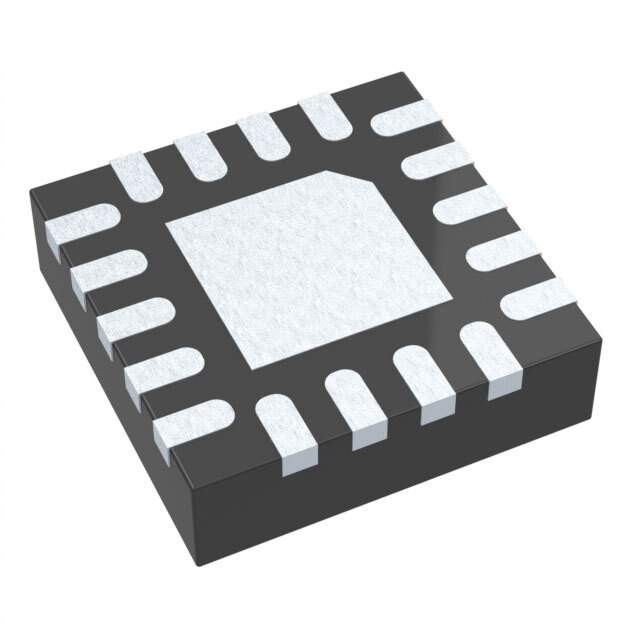

• Compact QFN package: The device is offered in a 3mm x 4mm QFN package, which is suitable for space-constrained applications.

The LTC3310SIV-1#WTRMPBF is also designed with robust thermal performance in mind, ensuring reliable operation over its full temperature range. With its combination of efficiency, flexibility, and compact packaging, this product from Analog Devices Inc. represents a high-quality power management solution for designers looking to optimize their systems for performance and size.
