LTC3536IMSE#PBF

Part No LTC3536IMSE#PBF
Manufacturer Analog Devices Inc.
Catalog PMIC - Voltage Regulators - DC DC Switching Regulators
Description IC REG BCK BST ADJ 1A 12MSOP / Buck-Boost Switching Regulator IC Positive Adjustable 1.8V 1 Output 1A 12-TSSOP (0.118", 3.00mm Width) Exposed Pad
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>PMIC - Voltage Regulators - DC DC Switching Regulators
Mfr Analog Devices Inc.
Package Tube
Function Step-Up/Step-Down
Output Configuration Positive
Topology Buck-Boost
Output Type Adjustable
Number of Outputs 1
Voltage - Input (Min) 1.8V
Voltage - Input (Max) 5.5V
Voltage - Output (Min/Fixed) 1.8V
Voltage - Output (Max) 5.5V
Current - Output 1A
Frequency - Switching 300kHz ~ 2MHz
Synchronous Rectifier Yes
Temperature Range - Operating -40°C ~ 125°C (TJ)
Mounting SMD (SMT)

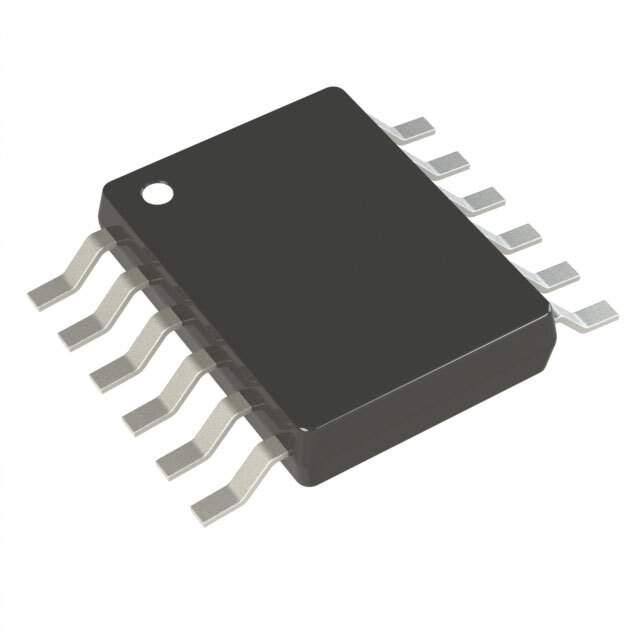

Package / Case 12-TSSOP (0.118", 3.00mm Width) Exposed Pad
Supplier Device Package 12-MSOP-EP
Base Product Number LTC3536
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Names -2735-LTC3536IMSE#PBF
Standard Package 37
Win Source Part Number 963922-LTC3536IMSE#PBF
Ultra Librarian 3D Model Ultra Librarian LTC3536IMSE#PBF CAD Model

Description

The LTC3536IMSE#PBF is a high-performance, integrated synchronous buck-boost DC/DC converter manufactured by Analog Devices Inc. This versatile power management integrated circuit (PMIC) is designed to efficiently convert a wide range of input voltages to a regulated output voltage, making it an ideal choice for portable battery-powered devices, industrial equipment, and automotive applications.

Key Features

  • Wide Input Voltage Range: The device can operate with input voltages from 1.8V to 5.5V, accommodating a variety of power sources including single-cell Li-Ion batteries and multi-cell alkaline/NiMH batteries.
  • Adjustable Output Voltage: The output voltage is adjustable from 1.8V up to 5.25V, which allows for flexibility in powering different types of loads and circuits.
  • High Efficiency: The LTC3536IMSE#PBF features synchronous rectification, which provides high efficiency over a wide range of load currents.
  • Compact Design: Housed in a compact 16-lead MSOP package, this device is designed for space-constrained applications.
  • Low Noise Operation: The switching frequency is programmable up to 2MHz, enabling the use of small external components and reducing noise that can interfere with sensitive RF and analog circuits.
  • Integrated Fault Protection: The device includes over-temperature protection, over-current protection, and short-circuit protection, enhancing system reliability.

Applications

The LTC3536IMSE#PBF is suitable for a broad range of applications where variable input voltages and space limitations are considerations. It is commonly used in:

  • Handheld Devices
  • Portable Medical Equipment
  • Industrial Power Supplies
  • Automotive Power Systems
  • Energy Harvesting Systems

Quality and Reliability

Analog Devices Inc. is known for their commitment to quality and reliability, and the LTC3536IMSE#PBF is no exception. It is designed to meet the stringent requirements of industrial and automotive applications, ensuring stable performance over a wide temperature range and a long operational lifespan.
