Analog Devices Inc. LTC3608IWKG#PBF Overview

The LTC3608IWKG#PBF is a high-efficiency, synchronous buck regulator from Analog Devices Inc., a renowned leader in the design and manufacturing of high-performance analog integrated circuits. This powerful regulator is capable of delivering up to 15A of continuous output current at voltages as low as 0.6V, making it an excellent choice for point-of-load applications where efficiency and thermal performance are critical.

Key Features

• Wide Input Voltage Range: The device operates from a 4V to 36V input voltage range, accommodating a variety of supply sources including intermediate bus voltages and battery-powered applications.
• High Efficiency: With its synchronous rectification topology, the LTC3608IWKG#PBF achieves up to 96% efficiency, reducing power loss and improving system thermal management.
• Adjustable Output Voltage: The output voltage can be set from 0.6V to VIN with an external resistor divider, providing flexibility for different voltage requirements.
• Low Dropout Operation: The regulator's strong high-side and low-side MOSFETs enable low dropout operation, ensuring output voltage is maintained even when the input voltage is close to the output voltage.
• Programmable Frequency: The switching frequency is programmable from 300kHz to 3MHz through an external resistor or can be synchronized to an external clock, allowing optimization between efficiency and component size.
• Robust Protection Features: The LTC3608IWKG#PBF includes overvoltage protection, overcurrent protection, and thermal shutdown, enhancing the reliability and longevity of the end application.

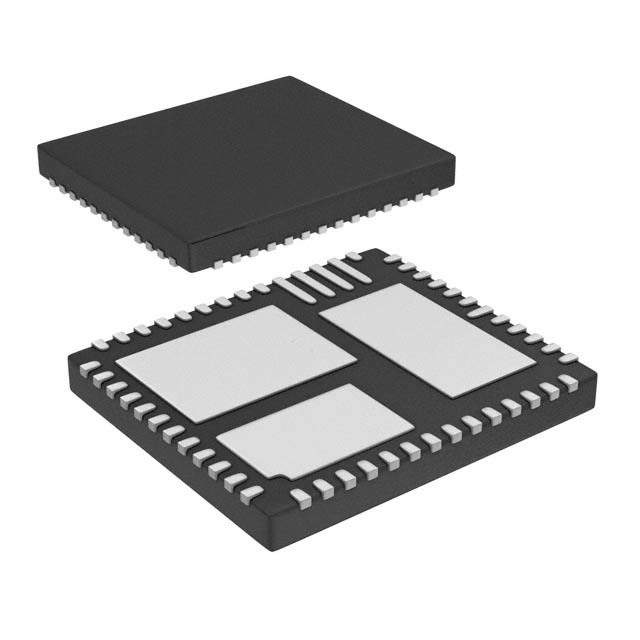

• Thermally Enhanced Package: It comes in a QFN-52 (7mm x 8mm) package with exposed pads for enhanced thermal performance, ensuring stable operation even under high load conditions.

Applications

The LTC3608IWKG#PBF is ideal for a wide range of applications, including:

• Distributed Power Systems
• Telecommunications and Networking Equipment
• Industrial and Automotive Electronics
• FPGAs, DSPs, and ASIC Power Supplies

With its robust feature set and flexible design, the LTC3608IWKG#PBF from Analog Devices Inc. is a versatile power solution that meets the needs of modern, high-performance electronics.
