Analog Devices Inc. LTC3835EDHC-1#TRPBF Overview

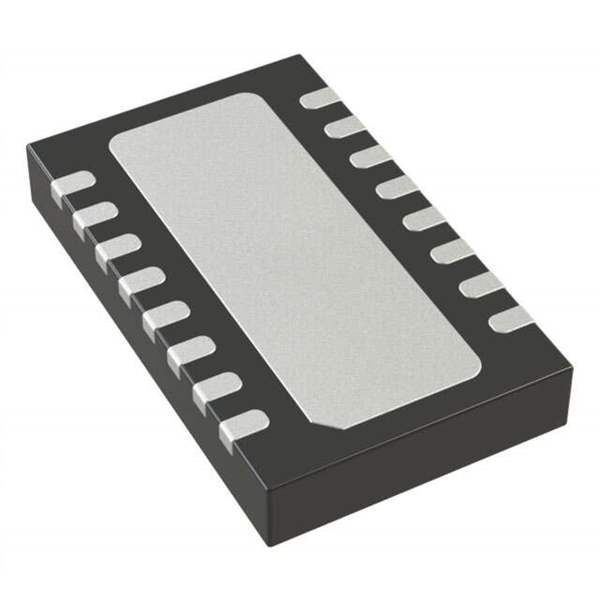

The LTC3835EDHC-1#TRPBF from Analog Devices Inc. is a high-performance, synchronous step-down DC/DC controller that is designed to drive all N-channel power MOSFET stages. It is a part of the LTC3835 series and comes in a compact, 16-lead DFN package, offering robust power management solutions for a wide range of applications.

Key Features

• Wide Input Voltage Range: The device can handle a wide input voltage range, typically from 4V to 36V, making it versatile for various power supply designs.
• Powerful Output: It is capable of delivering a continuous output current up to several tens of amperes with the use of external MOSFETs, depending on the application's thermal conditions and the MOSFETs' specifications.
• Adjustable Operating Frequency: With an operating frequency that can be set from 250kHz to 750kHz or can be synchronized to an external clock, this controller offers flexibility in optimizing the size of external components and avoiding critical noise-sensitive frequency bands.
• OPTI-LOOP® Compensation: The LTC3835 features OPTI-LOOP compensation, allowing the transient response to be optimized over a wide range of output capacitance and ESR values.
• Current Mode Operation: The current mode operation provides excellent line and load transient response.
• Robust Protection Features: It includes overvoltage protection, foldback current limiting, and an onboard LDO for IC power and gate drive.

Applications

The LTC3835EDHC-1#TRPBF is suitable for a variety of applications that require high efficiency and precision power regulation, such as:

• Telecommunications Infrastructure
• Networking Equipment
• Industrial Systems
• Automotive Power Systems
• High-Density Distributed Power Systems

Quality and Reliability

Analog Devices Inc. is known for its commitment to high quality and reliability. The LTC3835EDHC-1#TRPBF is built to meet these standards, ensuring stable and reliable performance in demanding environments. The device also features thermal protection and is designed to meet regulatory requirements, which helps to ensure a long operational lifespan.

Whether you are designing a new power system or upgrading an existing one, the LTC3835EDHC-1#TRPBF offers a powerful and flexible solution that can meet the needs of a wide range of power management applications.
