Product Overview: LTC6256IKC#TRPBF

The LTC6256IKC#TRPBF is a high-performance, rail-to-rail input/output operational amplifier from Analog Devices Inc., renowned for its precision and power efficiency. This op-amp is part of a family of single/dual/quad operational amplifiers which utilize advanced silicon technology to provide excellent speed and low noise at low power consumption levels.

Key Features

• Wide Supply Voltage Range: The device operates from a supply voltage range of 1.8V to 5.25V, making it suitable for a variety of applications including battery-powered devices.
• Low Power Consumption: With a quiescent current of 330μA, the LTC6256IKC#TRPBF is optimized for applications that require power efficiency without compromising on performance.
• High Speed: A gain bandwidth product of 6.5MHz and a slew rate of 1.8V/μs allow for fast signal processing, which is essential for high-speed analog circuits.
• Rail-to-Rail Input/Output: The op-amp's rail-to-rail input and output capability provide improved dynamic range, making it ideal for interfacing with ADCs and DACs that also operate rail-to-rail.
• Low Offset Voltage: The device features a low input offset voltage, which enhances measurement accuracy and system performance.
• Stability: It is stable with capacitive loads as high as 200pF, which is beneficial for applications with capacitive sources.
• Extended Temperature Range: The LTC6256IKC#TRPBF is designed to operate over an industrial temperature range of -40°C to 125°C, ensuring reliable performance in harsh environments.

Applications

The versatility of the LTC6256IKC#TRPBF makes it a great choice for a wide array of applications, including:

• Portable instrumentation
• Data acquisition systems
• Active filters
• Medical devices
• Buffering and signal conditioning

Package and Quality

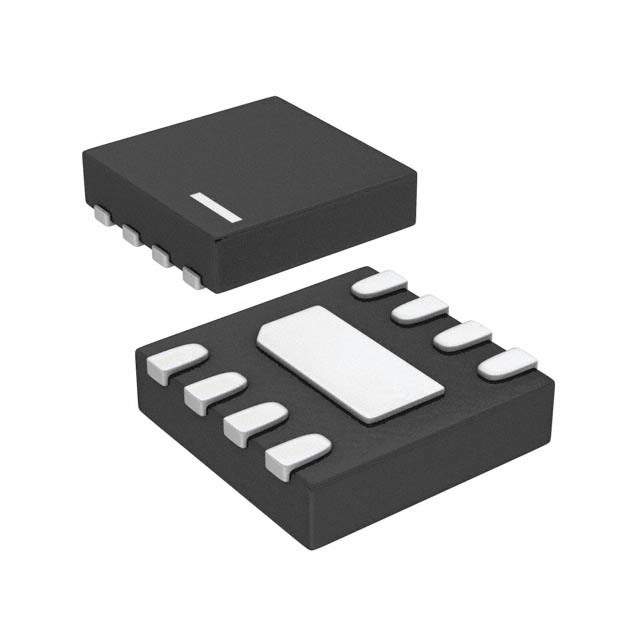

Supplied in a compact, surface-mountable DFN package, the LTC6256IKC#TRPBF is designed for space-constrained applications. It is available in tape and reel packaging for efficient assembly processes. Analog Devices Inc. ensures high-quality standards, and the product is RoHS compliant, meeting the requirements for environmental and safety standards.
