Analog Devices Inc. LTC7804EUD#TRPBF High Voltage Synchronous Step-Down Controller

The LTC7804EUD#TRPBF is a high-performance, synchronous step-down switching regulator controller from Analog Devices Inc., designed to manage power with efficiency and precision in a wide range of applications. This advanced component is a part of the company's extensive portfolio of power management solutions, offering a compact and robust design suitable for systems requiring high voltage inputs and low voltage outputs with significant power needs.

Featuring a wide input voltage range from 4V to 60V, the LTC7804EUD#TRPBF can comfortably handle a variety of supply voltages, making it ideal for automotive, industrial, and telecommunication systems. The device is capable of producing a continuous output current up to several tens of amps with the use of external MOSFETs, depending on the application's requirements and the chosen design configuration.

The LTC7804EUD#TRPBF utilizes a constant frequency, current mode architecture that provides fast transient response and excellent loop stability. Additionally, its powerful 1.1Ω onboard all N-channel gate drivers ensure efficient power delivery. The device also features a programmable fixed frequency from 50kHz to 900kHz, which can be synchronized to an external clock, allowing for flexibility in minimizing interference with sensitive frequency bands in noise-sensitive applications.

This controller integrates a range of protective features to ensure reliable operation under adverse conditions. These include overvoltage protection, undervoltage lockout, foldback current limiting, and thermal shutdown. Furthermore, its adjustable soft-start capability helps to prevent inrush current at startup, providing a smoother ramp-up to the desired output voltage.

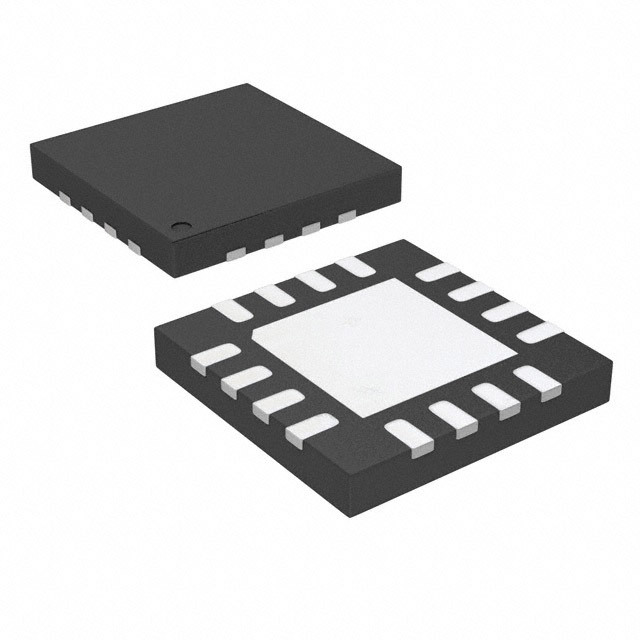

The LTC7804EUD#TRPBF comes in a compact (3mm x 4mm) QFN package, which is well-suited for space-constrained applications while also providing excellent thermal performance. Its lead-free finish and RoHS compliance ensure that it meets current environmental standards for electronic components.

Whether you are designing a power supply for a server, a GPS system, or an automotive power distribution network, the LTC7804EUD#TRPBF by Analog Devices Inc. offers a high-efficiency, versatile solution that can be tailored to meet the stringent requirements of your application.
