Analog Devices' LTM4644IY-1: A High-Efficiency Power Management Solution

The LTM4644IY-1 from Analog Devices Inc. is a high-performance quad DC/DC µModule (micromodule) regulator designed to deliver precision, efficiency, and versatility in a compact package. This advanced power management solution is ideal for applications requiring low voltage outputs and high current, such as datacom/telecom systems, industrial equipment, and high-density distributed power systems.

Key Features

• Integrated Design: The LTM4644IY-1 integrates four high-efficiency switching regulators in one compact package, reducing the need for multiple components and simplifying the power design process.
• Wide Input Voltage Range: It operates from a 4V to 14V input voltage range, making it suitable for a variety of supply sources.
• Adjustable Output Voltage: Each output can be configured to provide an adjustable voltage from 0.6V to 5.5V, accommodating a wide range of power needs.
• High Current Capability: The device can deliver up to 4A of continuous current per channel, making it capable of powering high-current applications.
• High Efficiency: With high-efficiency switching regulators, the LTM4644IY-1 minimizes power loss and heat generation, ensuring reliable operation.
• Thermal Management: The LTM4644IY-1 features advanced thermal design, including a high thermal conductivity package that allows for operation in high-temperature environments.
• Configurable Phasing: The regulators can be configured to operate out-of-phase, reducing the input ripple current and minimizing the need for bulky input capacitors.

Applications

The LTM4644IY-1 is versatile enough to be used in a variety of applications, including:

• Telecommunications infrastructure
• Servers and storage systems
• Industrial equipment
• Medical devices
• High-density distributed power systems

Easy Integration and Reliability

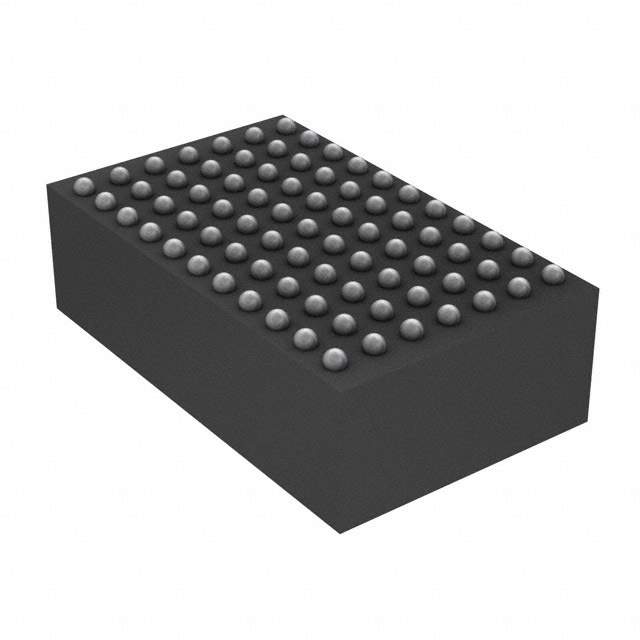

With its compact LGA package (15mm x 15mm x 5.01mm), the LTM4644IY-1 is designed for easy integration into space-constrained applications. Its robust design ensures reliability and long-term performance, making it an excellent choice for designers looking for a power management solution that combines functionality with ease of use.

For detailed specifications, application notes, and support documentation, visit Analog Devices Inc.'s website.
