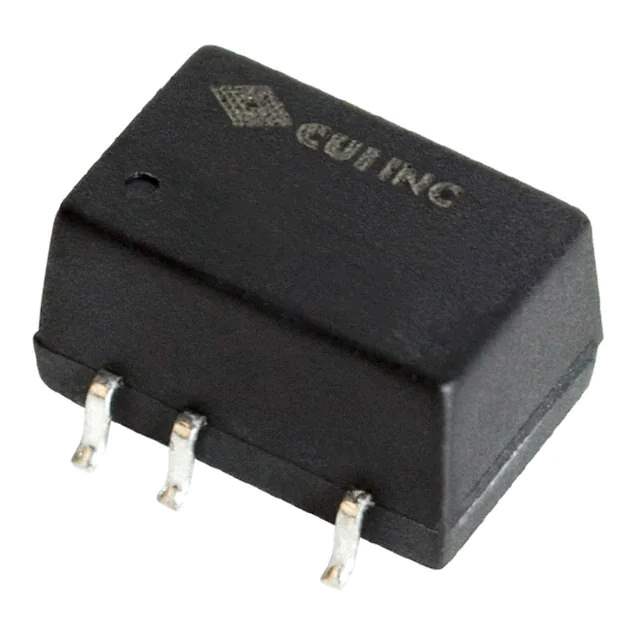

PDS1-S5-S5-M-TR CUI Inc. PDS1-S5-S5-M-TR Real Image PDS1-S5-S5-M-TR label picture 2 PDS1-S5-S5-M-TR real image
Same model may have multiple batches, images only for reference.
PDS1-S5-S5-M-TR CUI Inc. PDS1-S5-S5-M-TR Real Image PDS1-S5-S5-M-TR label picture 2 PDS1-S5-S5-M-TR real image
PDS1-S5-S5-M-TR CUI Inc. PDS1-S5-S5-M-TR Real Image PDS1-S5-S5-M-TR label picture 2 PDS1-S5-S5-M-TR real image
Same model may have multiple batches, images only for reference.

PDS1-S5-S5-M-TR

Part No PDS1-S5-S5-M-TR
Manufacturer CUI Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 5V 1W / Isolated Module DC DC Converter 1 Output 5V 200mA 4.5V - 5.5V Input
Datasheet
PDS1-S5-S5-M-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr CUI Inc.
Series PDS1-M (1W)
Package Tape & Reel
Product Status Active
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 5.5V
Voltage - Output 1 5V
Current - Output (Max) 200mA
Power (Watts) 1 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features SCP
Temperature Range - Operating -40°C ~ 105°C (With Derating)
Efficiency 80%
Mounting Type Surface Mount
Package / Case 8-SMD Module, 5 Leads
Size / Dimension 0.50" L x 0.33" W x 0.29" H (12.7mm x 8.3mm x 7.3mm)
Approval Agency EN, UL
Standard Number 55024; 55032 Class A; 60950-1
Base Product Number PDS1-S5
Standard Package 500 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 843543-PDS1-S5-S5-M-TR
Ultra Librarian 3D Model Ultra Librarian PDS1-S5-S5-M-TR CAD Model

Description

The PDS1-M (1W) is a power supply module with a size of 0.50" L x 0.33" W x 0.29" H manufactured by CUI Inc.

  • Module Type: Isolated
  • Voltage Isolation: 1.5 kV
  • Output: Single
  • Output Voltage: 5V
  • Maximum Output Current: 200mA
  • Input Voltage: 4.5V to 5.5V
  • Protection: SCP (Short Circuit Protection)
  • Efficiency: 80%
  • Application: ITE (Commercial)
  • Operating Temperature: -40°C to 105°C
  • Mounting Type: Surface Mountable
  • Package: 8-SMD Module
  • Leads: 5
  • Product Status: Active
