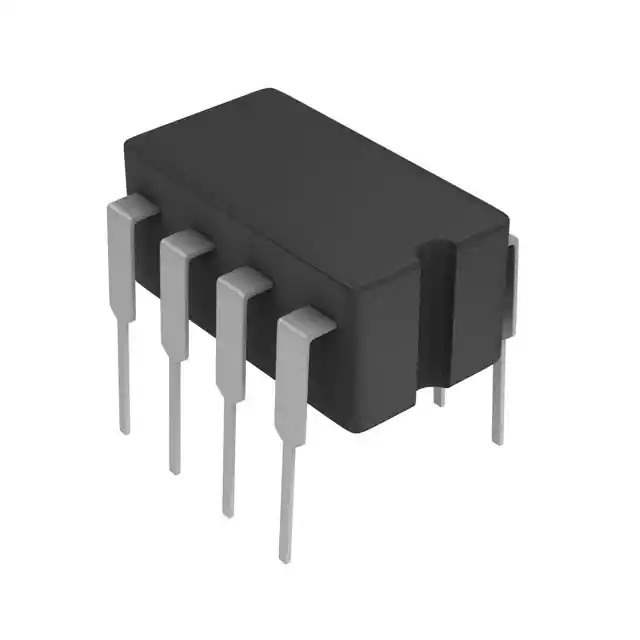

Product Overview: OP07CJ8 Precision Operational Amplifier

The OP07CJ8 is a high-precision operational amplifier from Analog Devices Inc., renowned for its ultra-low offset voltage and drift, making it an ideal choice for applications that demand the utmost accuracy and stability. This operational amplifier is a direct upgrade to the industry-standard OP07, offering enhanced performance specifications that are essential for instrumentation, test equipment, and high-end audio applications.

Key Features

• Ultra-Low Offset Voltage: The OP07CJ8 boasts an exceptional input offset voltage that is typically less than 75 µV, ensuring minimal error in signal amplification.
• Very Low Offset Voltage Drift: With a temperature coefficient as low as ±0.3 µV/°C, the OP07CJ8 provides consistent performance over a wide temperature range.
• High Input Impedance: The high input impedance minimizes loading on the input signal source, preserving signal integrity.
• Low Noise: It features a low noise density, which is critical for applications requiring a clean amplification of very small signals.
• Stable with High Capacitive Loads: The OP07CJ8 is designed to be stable when driving capacitive loads, making it versatile for various complex circuits.

Applications

The OP07CJ8 is well-suited for a range of precision applications, including:

• Instrumentation amplifiers
• Precision data systems
• Process control systems
• Analog-to-digital converters
• High-precision filters
• Medical equipment monitoring
• Professional audio equipment

Technical Specifications

Some of the technical specifications of the OP07CJ8 include:

• Power Supply Voltage Range: ±3 V to ±18 V
• Input Bias Current: 4 nA maximum
• Open-Loop Gain: 200 V/mV minimum
• Common-Mode Rejection Ratio (CMRR): 106 dB minimum
• Power Consumption: 500 µW at ±15 V

With its exceptional precision and stability, the OP07CJ8 from Analog Devices Inc. is a top-tier operational amplifier that meets the demands of the most critical analog circuits. Its robust design and superior specifications ensure reliable performance for sophisticated electronic systems.
