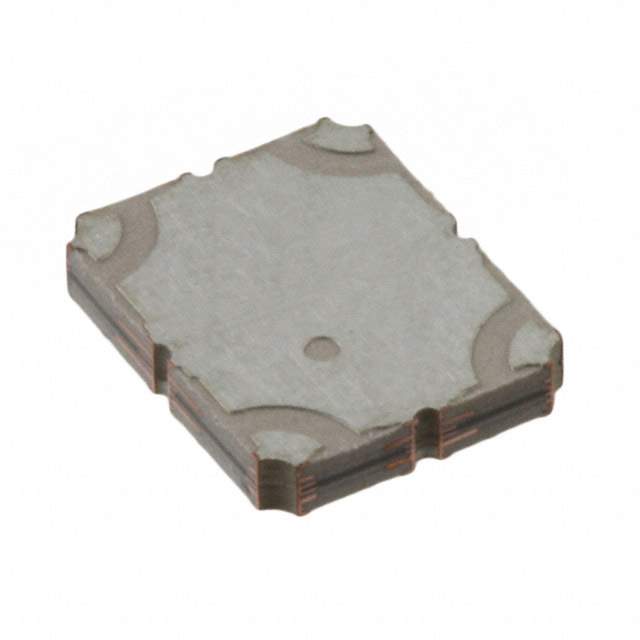

X3C09P1-03S Real Image
Same model may have multiple batches, images only for reference.

X3C09P1-03S

Part No X3C09P1-03S
Manufacturer Anaren
Catalog RF Directional Coupler
Description COUPLER 90DEG 800-1000MHZ 3DB
Datasheet
X3C09P1-03S Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer Anaren
Packaging Reel - TR
Status Active
Coupler Type Standard
Frequency 800MHz to 1GHz
Coupling Factor 3dB
Applications AMPS, CDMA, WCDMA
Insertion Loss 0.22dB
Maximum Power Dissipation 90W
Isolation 23dB
Return Loss 24.9dB
Case / Package 4-SMD
Win Source Part Number 043755-X3C09P1-03S
Popularity Medium
Supply and Demand Status Balance
Quantity per package 2k pcs
Ultra Librarian 3D Model Ultra Librarian X3C09P1-03S CAD Model

Description

The Anaren 043755-X3C09P1-03S is a standard coupler that operates in the frequency range of 800MHz to 1GHz.

  • Frequency Range: 800MHz to 1GHz
  • Coupling Factor: 3dB
  • Insertion Loss: 0.22dB
  • Isolation: 23dB
  • Return Loss: 24.9dB
  • Application: Ideal for AMPS, CDMA, and WCDMA applications.
  • Maximum Power Dissipation: 90W
  • Packaging: 4-SMD
  • Popularity: Medium
  • Supply and Demand Status: Balanced
  • Quantity per Package: 2,000
