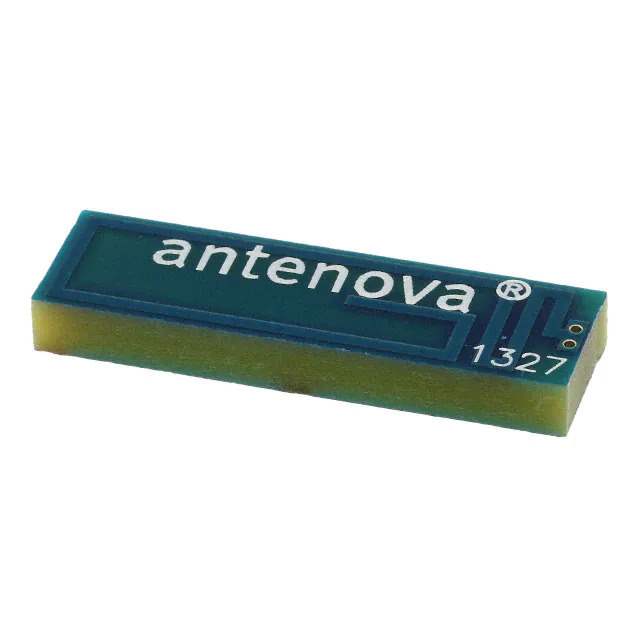

A10340 Real Image
Same model may have multiple batches, images only for reference.

A10340

Part No A10340
Manufacturer Antenova
Catalog RF Antennas
Description RF ANT 850/900MHZ PCB TRACE SLD / 850MHz, 900MHz, 1.8GHz, 1.9GHz GSM, UMTS PCB Trace RF Antenna 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz 1.7dBi, 3dBi Solder Surface Mount
Datasheet
A10340 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - RF Antennas
Mfr Antenova
Series Calvus
Package Tape & Reel
Product Status Obsolete
RF Family/Standard Cellular
Frequency Group UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz)
Frequency (Center/Band) 850MHz, 900MHz, 1.8GHz, 1.9GHz
Frequency Range 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz
Antenna Type PCB Trace
Number of Bands 5
VSWR 3.1
Return Loss -6dB
Gain 1.7dBi, 3dBi
Termination Solder
Mounting Type Surface Mount
Height (Max) 0.126" (3.20mm)
Applications GSM, UMTS
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8517.71.0000
Win Source Part Number 858794-A10340
Ultra Librarian 3D Model Ultra Librarian A10340 CAD Model

Description

The 858794-A10340 is a RF antenna from the Calvus series, designed for GSM and UMTS applications by Antenova.

  • Series: Calvus
  • Frequency Range: 824MHz to 960MHz and 1.71GHz to 2.17GHz
  • Return Loss: -6dB
  • VSWR: 3.1
  • Height: 0.126 inches (3.20mm)
  • Mounting Type: Surface Mount
  • Antenna Type: PCB Trace
  • Gain: 1.7dBi and 3dBi
  • Frequency Bands: Up to 5
  • Frequency Group: UHF
  • Manufacturer: Antenova
  • Lifecycle Status: Obsolete
  • ECCN: EAR99
  • REACH: Unaffected
  • HTSUS Code: 8517.71.0000
