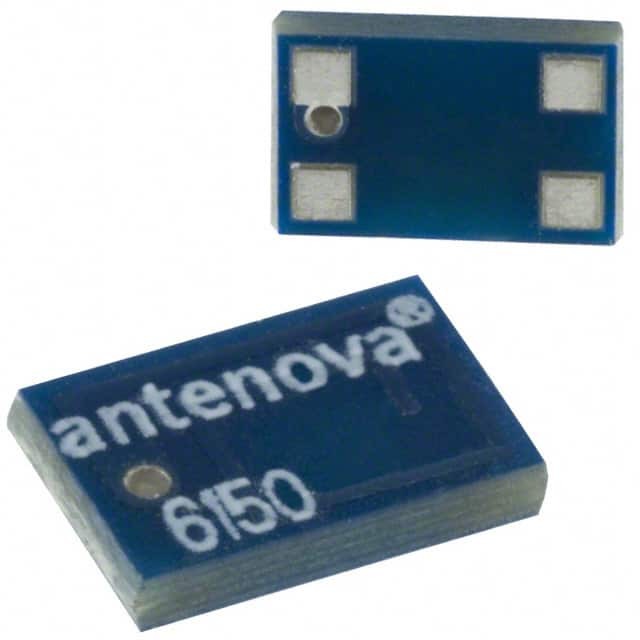

Same model may have multiple batches, images only for reference.
A6150
Same model may have multiple batches, images only for reference.

A6150

Part No A6150
Manufacturer Antenova
Catalog RF Antennas
Description RF ANT 2.4GHZ PCB TRACE SLDR SMD / 2.4GHz Bluetooth, WLAN, Zigbee? PCB Trace RF Antenna 2.4GHz ~ 2.5GHz 1dBi Solder Surface Mount
Datasheet
A6150 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - RF Antennas
Mfr Antenova
Series Impexa
Package Tape & Reel
Product Status Obsolete
RF Family/Standard 802.15.4, Bluetooth, WiFi
Frequency Group UHF (2GHz ~ 3GHz)
Frequency (Center/Band) 2.4GHz
Frequency Range 2.4GHz ~ 2.5GHz
Antenna Type PCB Trace
Number of Bands 1
VSWR 1.9
Return Loss -10dB
Gain 1dBi
Termination Solder
Mounting Type Surface Mount
Height (Max) 0.043" (1.10mm)
Applications Bluetooth, WLAN, Zigbee™
Standard Package 1,000 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8517.71.0000
Win Source Part Number 859026-A6150
Ultra Librarian 3D Model Ultra Librarian A6150 CAD Model

Description

The 859026-A6150 is a surface mount RF antenna designed for wireless communication applications.

  • Mounting: Surface Mount
  • Type: RF antenna
  • Series: Impexa
  • Frequency Range: 2.4GHz to 2.5GHz
  • Applications: Bluetooth, WLAN, and Zigbee™
  • Return Loss: -10dB
  • VSWR: 1.9
  • Height: 0.043" (1.10mm)
  • Package: Tape & reel
  • Standard Package Quantity: 1,000 pcs
  • Status: Obsolete
  • Manufacturer: Antenova
