Same model may have multiple batches, images only for reference.

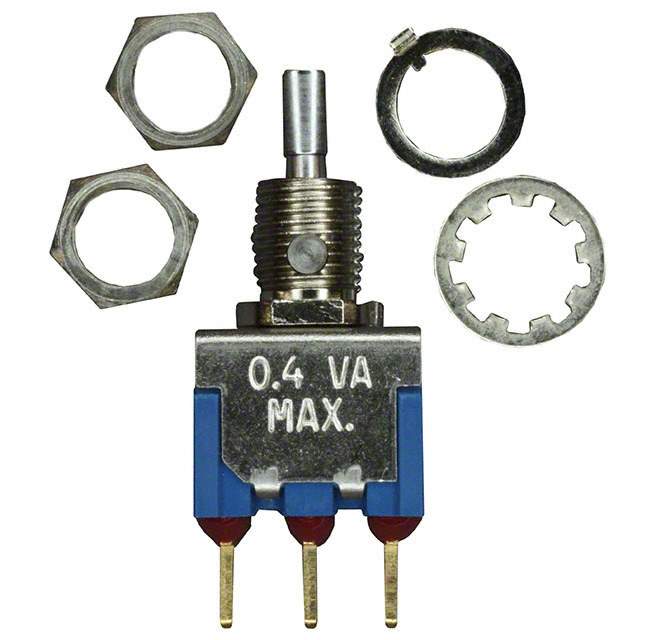

ST12F3MCBE Real Image
Same model may have multiple batches, images only for reference.

ST12F3MCBE

Part No ST12F3MCBE
Manufacturer Apem Inc.
Catalog Toggle Switches
Description SWITCH TOGGLE SPDT 0.4VA 20V  /  Toggle Switch SPDT Panel Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Toggle Switches
Mfr APEM Inc.
Series ST
Package Bulk
Product Status Obsolete
Mounting Type Panel Mount
Circuit SPDT
Switch Function On-Off-On
Current Rating (Amps) 0.4VA (AC/DC)
Voltage Rating - AC 20 V
Voltage Rating - DC 20 V
Actuator Type Flatted
Actuator Length 6.35mm
Illumination Non-Illuminated
Termination Style PC Pin
Panel Cutout Dimensions Circular - 6.35mm Dia
Bushing Thread 1/4-40
Features Epoxy Sealed Terminals
Temperature Range - Operating -30°C ~ 85°C
Actuator Material Brass, Nickel Plated
Electrical Life 40,000 Cycles
Other Names ST1-2F3MCBE,ST1-2F3MCBE
Standard Package 25
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1232869-ST12F3MCBE
Ultra Librarian 3D Model Ultra Librarian ST12F3MCBE CAD Model

Description

The APEM Inc. ST12F3MCBE toggle switch is a single-pole double-throw (SPDT) switch with an on-off-on function.

  • Circuit: SPDT
  • Switch Function: On-Off-On
  • Actuator Type: Flatted
  • Actuator Length: 6.35mm
  • Panel Cutout: Circular, 6.35mm diameter
  • Current Rating: 0.4VA (AC/DC)
  • Voltage Rating: 20V (AC/DC)
  • Temperature Range: -30°C to 85°C
  • Mechanical Life: 40,000 cycles
  • Mounting Type: Panel Mounted
  • Bushing Thread: 1/4-40
  • Actuator Material: Brass with a Nickel Plating
  • Terminals: Epoxy Sealed
  • Series: ST
  • Package: Bulk, 25 pieces
  • Status: Obsolete
