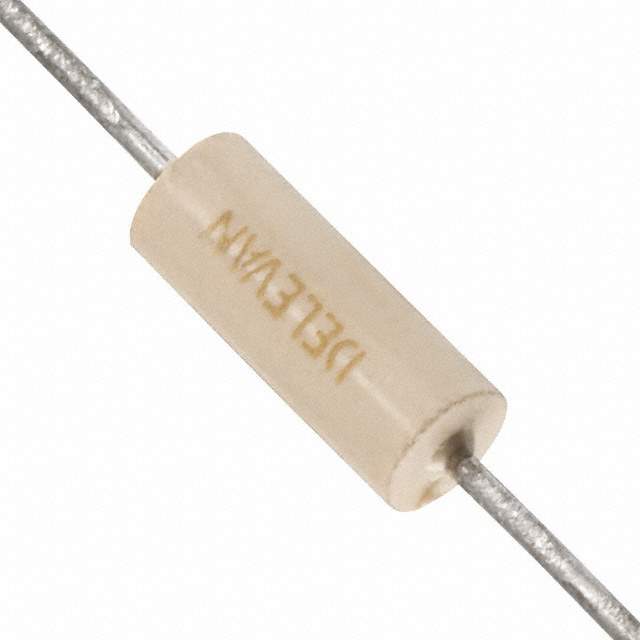

Same model may have multiple batches, images only for reference.

1025-54K

Name: 1025-54K
Brand: API Delevan Inc.
SKU: 1139319
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	1025-54K
Manufacturer	API Delevan Inc.
Catalog	Fixed Inductors
Description	FIXED IND 27UH 140MA 3.5 OHM TH / 27 µH Unshielded Inductor 140 mA 3.5Ohm Max Axial
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	API Delevan Inc.
Series	Military, MIL-PRF-M15305, MS75084
Package	Tape & Reel (TR),Cut Tape (CT)
Material - Core	Iron
Inductance	27 µH
Tolerance	±10%
Current Rating (Amps)	140 mA
Shielding	Unshielded
DC Resistance (DCR)	3.5Ohm Max
Q @ Freq	50 @ 2.5MHz
Frequency - Self Resonant	20MHz
Temperature Range - Operating	-55°C ~ 105°C
Inductance Frequency - Test	2.5 MHz
Mounting Type	Through Hole
Package / Case	Axial
Dimension	0.095" Dia x 0.250" L (2.41mm x 6.35mm)
RoHS Status	RoHS non-compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.8000
Other Names	DN2554,1134-1077-1-MIL,1134-1077-2-MIL,DN2554-ND,1025-54K-1000 TR,1134-1077,1134-1077-1,1134-1077-2,102554K,1134-1077-MIL,DN2554INACTIVE
Standard Package	1,000
Win Source Part Number	1139319-1025-54K
Ultra Librarian 3D Model	Ultra Librarian 1025-54K CAD Model

Alternative Products

Description

The 1139319-1025-54K is a fixed inductor with an axial package.

Type: Fixed Inductor
Package: Axial
Shielding: Unshielded
Inductance: 27 µH
Tolerance: ±10%
Core Material: Iron
Maximum DC Resistance (DCR): 3.5Ohm
Mounting Type: Through Hole
Dimension: 0.095" Dia x 0.250" L (2.41mm x 6.35mm)
Current Rating: 140mA
Inductance Frequency: 2.5 MHz
Application: Military
