Same model may have multiple batches, images only for reference.

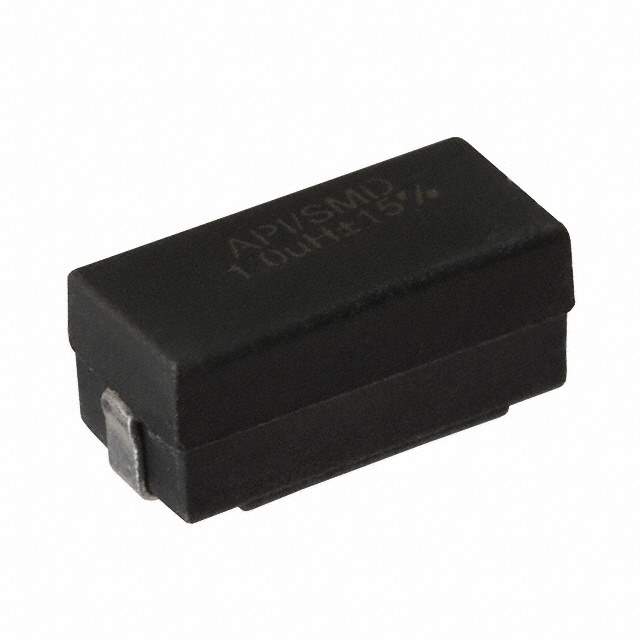

4922R-15L Real Image
Same model may have multiple batches, images only for reference.

4922R-15L

Part No 4922R-15L
Manufacturer API Delevan Inc.
Catalog Fixed Inductors
Description Surface Mount High Current Power Inductors | FIXED IND 15UH 2.11A 89 MOHM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer API Delevan Inc.
Packaging Reel
Type Wirewound
Material - Core Ferrite
Inductance 15μH
Tolerance ±15%
Current Rating (Amps) 2.11A
Current - Saturation 2.11A
Shielding Unshielded
DC Resistance (DCR) 89mOhm Max
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 1kHz
Mounting Style SMD
Manufacturer Package Nonstandard
Parts Dimension 0.505" L x 0.240" W (12.82mm x 6.09mm)
Height - Seated (Maximum) 0.230" (5.84mm)
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1128820-4922R-15L
Manufacturer Homepage www.delevan.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 4922R-15L CAD Model

Description

The 580431 is a wirewound inductor manufactured by API Delevan Inc.

  • Core Material: Ferrite
  • Inductance: 15μH
  • Inductance Tolerance: ±15%
  • DC Resistance (DCR): 89mOhm Max
  • Current - Saturation: 2.11A
  • Mounting Type: Surface Mount
  • Manufacturer Package: Nonstandard
  • Seated Height: 0.230" (5.84mm)
  • Supply and Demand Status: Limited
  • Current Rating (Amps): 2.11A
  • Inductance Frequency - Test: 1kHz
  • Operating Temperature: -55°C ~ 125°C
