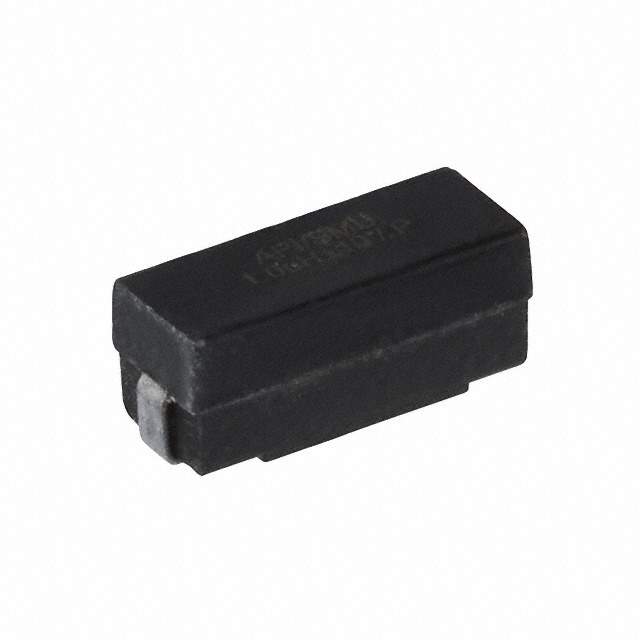

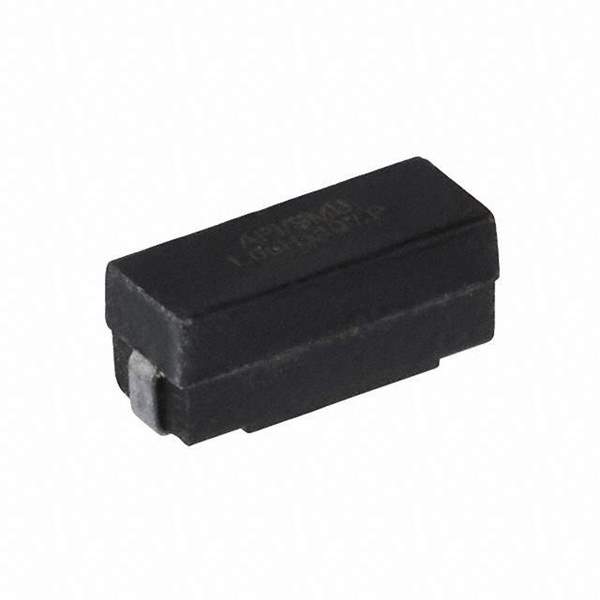

P1330R-563K Real Image
Same model may have multiple batches, images only for reference.

P1330R-563K

Part No P1330R-563K
Manufacturer API Delevan Inc.
Catalog Fixed Inductors
Description FIXED IND 56UH 442MA 900 MOHM
Datasheet
P1330R-563K Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer API Delevan Inc.
Packaging Reel - TR
Status Active
Material - Core Ferrite
Inductance 56μH
Tolerance ±10%
Current Rating 442mA
Current - Saturation 216mA
DC Resistance (DCR) 900 mOhm Max
Temperature Range - Operating -55°C to 125°C
Frequency - Test 1kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.145" (3.68mm)
Win Source Part Number 1085342-P1330R-563K
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian P1330R-563K CAD Model

Description

The P1330R-563K inductor from API Delevan Inc. is a high-quality component that is designed for use in a wide range of electronic applications.

  • Manufacturer: API Delevan Inc.
  • Current Rating: 442mA
  • Inductance: 56μH
  • Status: Active
  • Temperature Range: -55°C to 125°C
