Same model may have multiple batches, images only for reference.

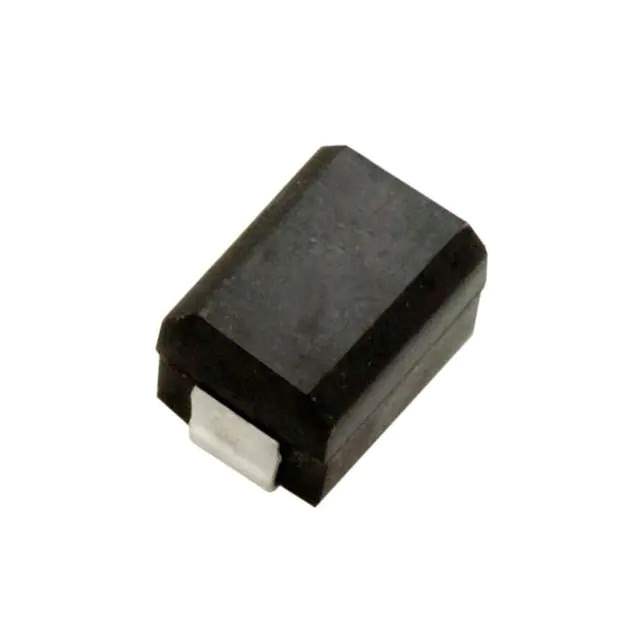

S1812-101K Real Image
Same model may have multiple batches, images only for reference.

S1812-101K

Part No S1812-101K
Manufacturer API Delevan Inc.
Catalog Fixed Inductors
Description FIXED IND 100NH 1.49A 90MOHM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr API Delevan Inc.
Series S1812
Package Tape & Reel
Product Status Active
Material - Core Iron
Inductance 100 nH
Tolerance ±10%
Current Rating (Amps) 1.49 A
Shielding Shielded
DC Resistance (DCR) 90mOhm Max
Q @ Freq 50 @ 25MHz
Frequency - Self Resonant 460MHz
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 25 MHz
Mounting Type Surface Mount
Package / Case 1812 (4532 Metric)
Supplier Device Package 1812
Size / Dimension 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) 0.134" (3.40mm)
Standard Package 1,000 pcs
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 662282-S1812-101K
Ultra Librarian 3D Model Ultra Librarian S1812-101K CAD Model

Description

The S1812-101K is a fixed inductor from API Delevan Inc.

  • Series: S1812
  • Package: shielded
  • Format: tape and reel
  • Size: 0.177" L x 0.126" W (4.50mm x 3.20mm)
  • Inductance: 100 nH
  • Height: 0.134" (3.40mm)
  • DCR: 90mOhm
  • Current Rating: 1.49 A
  • Operating Temperature: -55°C to 125°C
  • Q Value: 50 @ 25MHz
  • Self-Resonant Frequency: 460MHz
  • Mounting: surface mount
