Same model may have multiple batches, images only for reference.

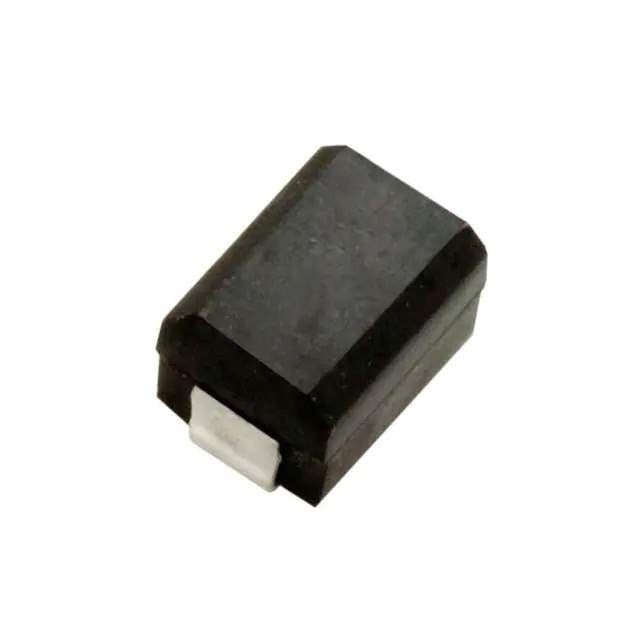

S1812R-274K Real Image
Same model may have multiple batches, images only for reference.

S1812R-274K

Part No S1812R-274K
Manufacturer API Delevan Inc.
Catalog Fixed Inductors
Description FIXED IND 270UH 135MA 11 OHM SMD / 270 μH Shielded Inductor 135 mA 11Ohm Max 1812 (4532 Metric)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr API Delevan Inc.
Series S1812R
Package Tape & Reel
Product Status Active
Material - Core Ferrite
Inductance 270 µH
Tolerance ±10%
Current Rating (Amps) 135 mA
Shielding Shielded
DC Resistance (DCR) 11Ohm Max
Q @ Freq 40 @ 790kHz
Frequency - Self Resonant 4MHz
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 790 kHz
Mounting Type Surface Mount
Package / Case 1812 (4532 Metric)
Supplier Device Package 1812
Size / Dimension 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) 0.134" (3.40mm)
Standard Package 500 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 932607-S1812R-274K
Ultra Librarian 3D Model Ultra Librarian S1812R-274K CAD Model

Description

The S1812R-274K is a fixed inductor from API Delevan Inc.

  • Series: S1812R
  • Package: Shielded, Tape and Reel
  • Size: 0.177" L x 0.126" W (4.50mm x 3.20mm)
  • Inductance: 270 μH
  • Maximum Seated Height: 0.134" (3.40mm)
  • DC Resistance (DCR): 11 Ohm
  • Current Rating: 135 mA
  • Operating Temperature Range: -55°C to 125°C
  • Q Value: 40 @ 790kHz
  • Self-Resonant Frequency: 4MHz
  • Mounting Type: Surface Mount
