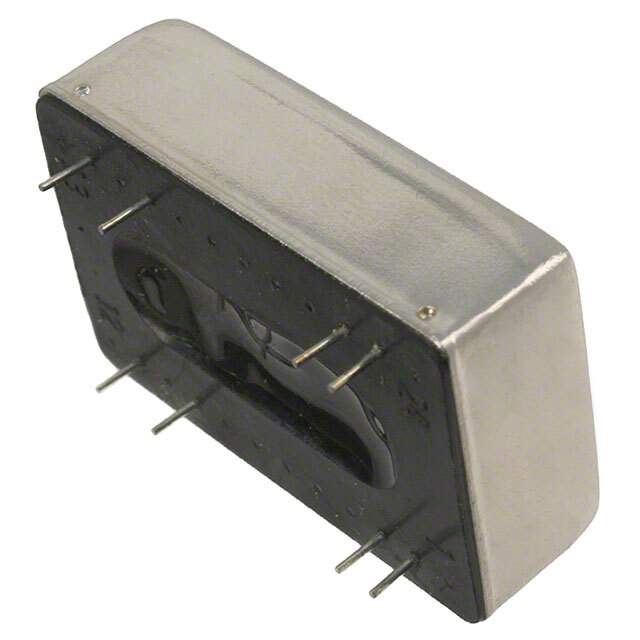

Same model may have multiple batches, images only for reference.

ASA00BB36-L

Get a Quote

Part No	ASA00BB36-L
Manufacturer	Artesyn Embedded Technologies
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-12V 6W / Isolated Module DC DC Converter 2 Output 12V -12V 250mA, 250mA 18V - 75V Input
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	Artesyn Embedded Power
Series	ASA (6W)
Package	Tube
Product Status	Obsolete
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	18V
Voltage - Input (Max)	75V
Voltage - Output 1	12V
Voltage - Output 2	-12V
Current - Output (Max)	250mA, 250mA
Power (Watts)	6 W
Voltage - Isolation	1.5 kV
Applications	ITE (Commercial)
Features	SCP
Temperature Range - Operating	-40°C ~ 71°C
Efficiency	81%
Mounting Type	Through Hole
Package / Case	8-DIP Module
Size / Dimension	1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)
Standard Package	200
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	1338879-ASA00BB36-L
Ultra Librarian 3D Model	Ultra Librarian ASA00BB36-L CAD Model

Alternative Products

Description

The Artesyn Embedded Power ASA (6W) is an isolated module DC DC converter with 2 output 12V, -12V, and 250mA, 250mA current output (max).

Power Output: 6W
Temperature Range: -40°C ~ 71°C
Package: 8-DIP Module
Mounting Type: Through Hole
Category: Power Supplies - Board Mount - DC DC Converters
Applications: ITE (Commercial)
HTSUS: 8504.40.9580
ECCN: EAR99
Product Status: Obsolete
