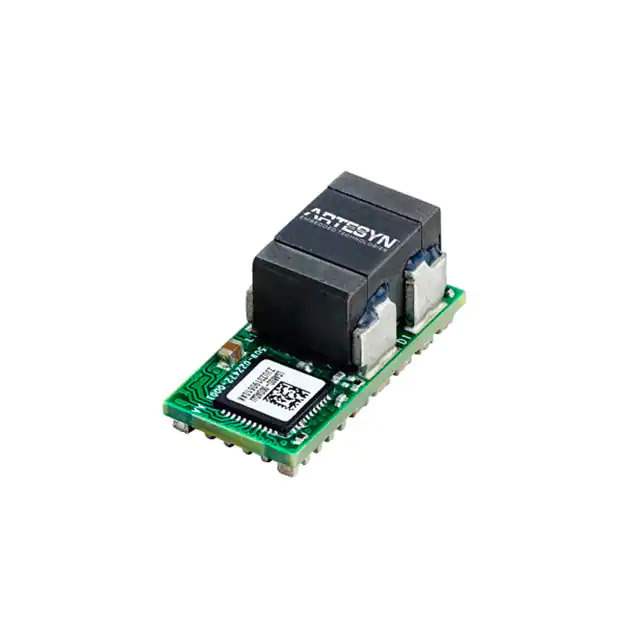

Same model may have multiple batches, images only for reference.

LGA80D-00DADJJ

Name: LGA80D-00DADJJ
Brand: Artesyn Embedded Technologies
SKU: 846263
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	LGA80D-00DADJJ
Manufacturer	Artesyn Embedded Technologies
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CNVRTR 0.6-5.2V 0.6-5.2V / Non-Isolated PoL Module, Digital DC DC Converter 2 Output 0.6 ~ 5.2V 0.6 ~ 5.2V 40A, 40A 7V - 14V Input
Datasheet	LGA80D-00DADJJ Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	Artesyn Embedded Technologies
Series	LGA80D
Package	Tape & Reel
Product Status	Active
Type	Non-Isolated PoL Module, Digital
Number of Outputs	2
Voltage - Input (Min)	7V
Voltage - Input (Max)	14V
Voltage - Output 1	0.6 ~ 5.2V
Voltage - Output 2	0.6 ~ 5.2V
Current - Output (Max)	40A, 40A
Applications	ITE (Commercial)
Features	Remote On/Off, OCP, OTP, OVP
Temperature Range - Operating	-40°C ~ 85°C
Efficiency	95.5%
Mounting Type	Surface Mount
Package / Case	28-SMD Module
Size / Dimension	1.00" L x 0.50" W x 0.48" H (25.4mm x 12.7mm x 12.2mm)
Base Product Number	LGA80D
Standard Package	200 pcs
MSL Level	3 (168 Hours)
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	846263-LGA80D-00DADJJ
Ultra Librarian 3D Model	Ultra Librarian LGA80D-00DADJJ CAD Model

Alternative Products

Description

The LGA80D-00DADJJ is a non-isolated PoL module designed for power supplies in board-mounted DC-DC converters.

Module Type: Non-Isolated PoL
Application: Board Mounted DC-DC Converters
Size: 1.00" L x 0.50" W x 0.48" H (25.4mm x 12.7mm x 12.2mm)
Efficiency: 95.5%
Output Current (Max): 40A per Output
Input Voltage: 7V to 14V
Output Voltage: 0.6V to 5.2V
Features: Remote On/Off, OCP, OTP, OVP
Application: ITE (Commercial)
Package: 28-SMD Module
Mounting Style: Surface Mount
Manufacturer: Artesyn Embedded Technologies
