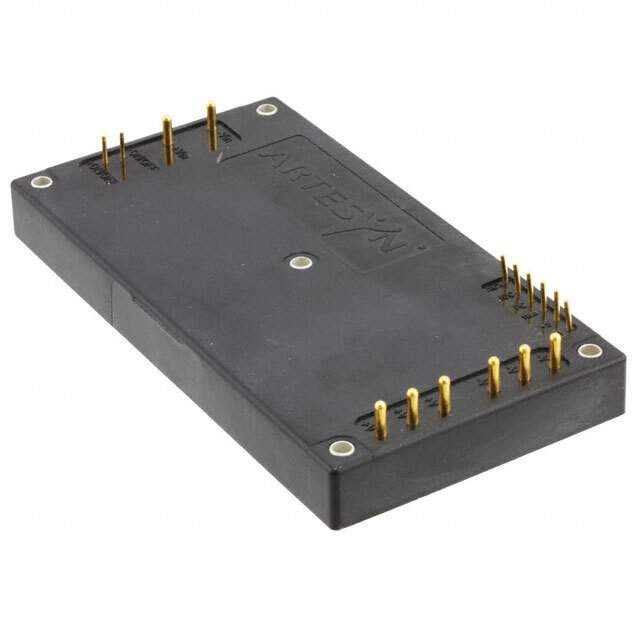

Same model may have multiple batches, images only for reference.

RFF500-24S28-5Y

Get a Quote

Part No	RFF500-24S28-5Y
Manufacturer	Artesyn Embedded Technologies
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 16.8-29.4V 500W / Isolated Module DC DC Converter 1 Output 16.8 ~ 29.4V 17.9A 18V - 36V Input
Datasheet	RFF500-24S28-5Y Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Mfr	Artesyn Embedded Power
Series	RFF500 (500W)
Package	Tray
Product Status	Obsolete
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	18V
Voltage - Input (Max)	36V
Voltage - Output 1	16.8 ~ 29.4V
Current - Output (Max)	17.9A
Power (Watts)	500 W
Applications	ITE (Commercial)
Features	Remote On/Off, OCP, OTP, OVP, SCP
Temperature Range - Operating	-40°C ~ 100°C
Efficiency	90%
Mounting Type	Through Hole
Package / Case	Full Brick
Dimension	4.60" L x 2.40" W x 0.50" H (116.8mm x 61.0mm x 12.7mm)
MSL Level	2 (1 Year)
ECCN	EAR99
HTSUS	8504.40.9580
Other Names	454-1340,RFF50024S285Y
Standard Package	16
Win Source Part Number	1227481-RFF500-24S28-5Y
Ultra Librarian 3D Model	Ultra Librarian RFF500-24S28-5Y CAD Model

Alternative Products

Description

The RFF500-24S28-5Y is a 500W isolated module type electronic component manufactured by Artesyn Embedded Power.

Package: Full Brick
Application: Power Supplies - Board Mount>DC DC Converters
Features: Remote On/Off, OCP, OTP, OVP, SCP
Mounting Type: Through Hole
Power Output: 500 W
Current Output (Max): 17.9A
Voltage Input (Min): 18V
Voltage Input (Max): 36V
Voltage Output 1: 16.8 ~ 29.4V
Voltage Output 2: None
Voltage Output 3: None
Efficiency: 90 percent
Temperature Range: -40°C ~ 100°C
